Replacement transmitters for Cardale Autoglide, Force 50, Stanley,
Steel-line, Thermaglide & Cardale DC series garage door operators |
|

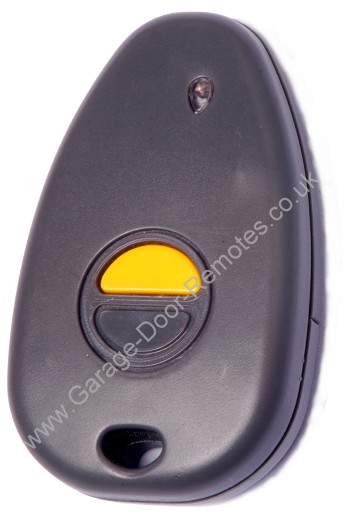

old case style |
late case style |
Cardale DC series keyfob
(418Mhz & 433Mhz versions)
click here for details |
|
|
 |
868Mhz Cardale DC series keyfob
(with grey buttons)
As supplied with current DC series operators, these keyfobs are
also
compatible with Compton AutoLift II and E-King branded operators
supplied with CR2032 battery, visor clip, wall
mounting bracket & programming jumper plugCardale
Ref: AZAE1122
our price for one: £ excl. VAT
2-4 qty price: £ each
5+ qty price: £ each
click here for details |
|
 |
 |
Cardale AutoGlide III keyfob
Ref: AZAA3150 - 418Mhz -
discontinued -click here for upgrade
Ref: AZAA3151 - 433Mhz
- discontinued -
click here
for upgrade
Ref: AZAA3152 - 433Mhz (red front)
- discontinued - click here for upgrade
click here for details |
|
UKTX003
original case style |
UKTX003
updated case style |
418Mhz keyfob type UKTX003
As used on many roller type doors including Cordula,
Nationwide,
Rollexa,
Steel-line and Thermaglide,
from approx. 1993 to 1998. Also used on Cardale
AutoGlide II canopy door operators
until May 1998
quantity prices from: £
each excl. VAT
click here for details |
|
Click image to enlarge
Stanley Multicode handset |
Stanley Multicode 40.685Mhz handset type 3079-12
(equivalent to black 40.685Mhz Stanley handset type 1083
size - 95mm x 60mm x 25mm - 9v battery type MN1604
Cardale Ref: AZAS1040
These handsets were supplied with Stanley 3831 and Stanley ET380 door operators,
they were also supplied with various other garage door operators
from approx. 1995 to 2000 including Swift Challenger & John Carr.
Availability: discontinued -
click here for a suitable upgrade
|
|
Click image to enlarge
Cardale Force 50 keyfob |
Cardale Force 50 keyfob
size - 67mm x 43mm x 16mm
operating frequency 433Mhz
LR23A battery included
Availability: discontinued
programming procedure
(see P.14 of 5.6Mb pdf download) |
|
Click image to enlarge

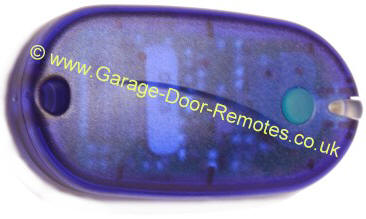

Cardale Ref: AZAT0001
(Seav model: BE Happy S1)
|
Single button fob for Cardale Thermaglide
roller
doors supplied from 2001 to Jan 2004
Thermaglide roller door control box identification: White wall control box
Operating frequency: 433 MHz fixed code
Seav model: BE Happy S1 printed on back (with
10x DIP switches inside)
Can replace the original black rectangular handset with a blue button
Supplied with one CR2032 battery
Not to be confused with the similar looking rolling code model (BE HAPPY RS1),
they are not compatible with each other.
SEAV BE Happy S1
(Cardale Ref: AZAT0001)
Availability: discontinued
|
Click image to enlarge

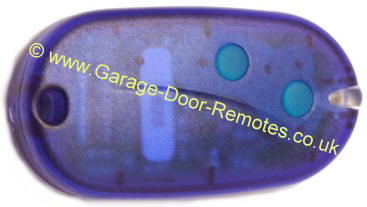

Cardale Ref: AZAT0002
(Seav model: BE Happy S2)
|
Two button fob for Cardale Thermaglide
roller
doors supplied from 2001 to Jan 2004
Thermaglide roller door control box identification: White wall control box
Operating frequency: 433 MHz fixed code
Seav model: BE Happy S2 printed on back (with
10x DIP switches inside)
Can replace the original black rectangular handset with blue buttons
can provide individual control of up to two doors
supplied with one CR2032 battery
Not to be confused with the similar looking rolling code model (BE HAPPY RS2),
they are not compatible with each other.
SEAV BE Happy S2
(Cardale Ref: AZAT0002)
our price for one: £
excl. VAT
|
Click image to enlarge

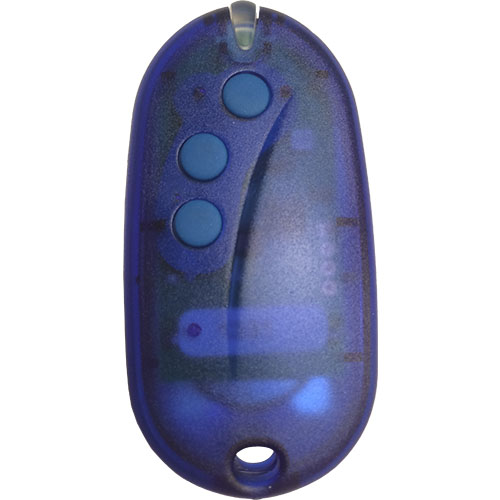

Cardale Ref: AZAT0003
(Seav model: BE Happy S3) |
Three button fob for Cardale Thermaglide
roller
doors supplied from 2001 to Jan 2004
Thermaglide roller door control box identification: White wall control box
Operating frequency: 433 MHz fixed code
Seav model: BE Happy S3 printed on back (with 10x DIP switches inside)
Can replace the original black rectangular handset with blue buttons
can provide individual control of up to three doors
supplied with one CR2032 battery
Not to be confused with the similar looking rolling code model (BE HAPPY RS3),
they are not compatible with each other.
SEAV BE Happy S3
(Cardale Ref: AZAT0003)
our price for one: £
excl. VAT
|
|
|
Programming Procedure

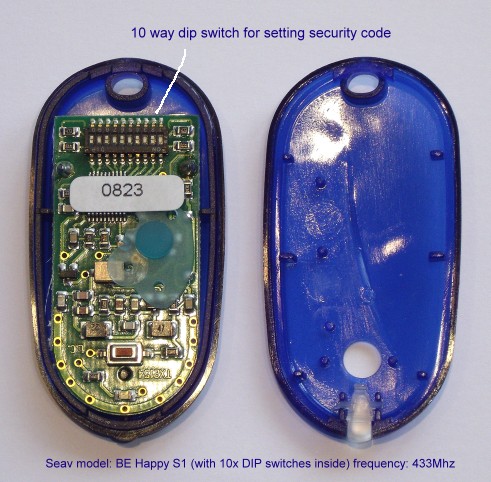

The above Seav 'BE Happy' transmitters use fixed code / DIP switch type security coding and they
have ten binary switches inside to
set the security code to one of 1024 combinations.
To programme an additional transmitter, open your original keyfob transmitter and note the positions of the
ten switches inside, then open your new keyfob and set the positions of the ten
switches inside to the same sequence as those in your original keyfob.
Need help with programming? Not sure which remote control you need? Our technical team are happy to help! If you need assistance, please contact us by clicking here.
|
|
Click image to enlarge
SEAV Model: BE Happy RS1
|
One button remote control for Cardale roller doors
Operating frequency: 433 MHz rolling code
SEAV Model: BE Happy RS1 printed on back (does not have dipswitches inside)
Can provide control of one door
Supplied with one CR2032 battery
Not to be confused with the similar looking fixed code model (BE HAPPY S1),
they are not compatible with each other.
SEAV BE Happy RS1
Contact us for more information by clicking here
Alternatively you can use the two button model below which works exactly the same.
|
Click image to enlarge
SEAV Model: BE Happy RS2 |
Two button remote control for Cardale roller doors
Operating frequency: 433 MHz rolling code
SEAV Model: BE Happy RS2 printed on back (does not have dipswitches inside)
Can provide individual control of up to two doors
Supplied with one CR2032 battery
Not to be confused with the similar looking fixed code model (BE HAPPY S2),
they are not compatible with each other.
SEAV BE Happy RS2
our price for one: £
excl. VAT
2-4 qty price: £
each
5+ qty price: £
each
|
Click image to enlarge
SEAV Model: BE Happy RS3 |
Three button remote control for Cardale roller doors
Operating frequency: 433 MHz rolling code
SEAV Model: BE Happy RS3 printed on back (does not have dipswitches inside)
Can provide individual control of up to three doors
Supplied with one CR2032 battery
Not to be confused with the similar looking fixed code model (BE HAPPY S3),
they are not compatible with each other.
SEAV BE Happy RS3
Contact us for more information by clicking here
Alternatively you can use the two button model above which works exactly the same. |
|
|
Programming Procedure
The above SEAV 'BE Happy RS' transmitter uses rolling type security coding and does not have binary switches inside the remote. Programming additional transmitters requires recording directly with the receiver unit, therefore it is not possible to "transfer" codes from one remote to another.
Need help with programming? Not sure which remote control you need? Our technical team are happy to help! If you need assistance, please contact us by clicking here.
|
|
Click image to enlarge

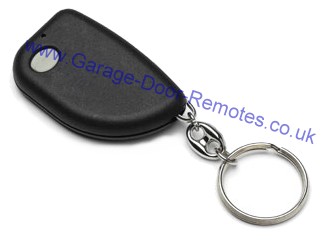

Cardale Ref: AZAT0006
Single channel keyfob
(to operate one garage door) |
Cardale Thermaglide single button keyfob
(as supplied from Feb 2004 to Aug 2006)
For use with ANSA roller door control box,
blue with white button
ANSA
AURiEL HCS- 360 model ATX1 (single channel)
Keeloq rolling code system - frequency: 433Mhz
LR23A battery and
programming instructions supplied
Cardale Ref: AZAT0006 Discontinued
|
Click image to enlarge

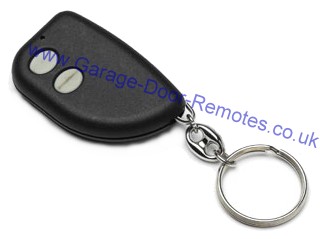

Cardale Ref: AZAT0007
Twin channel keyfob
(can provide individual
control of two doors) |
Cardale Thermaglide twin button keyfob
(as supplied from Feb 2004 to Aug 2006)
For use with ANSA roller door control box,
blue with white button
ANSA
AURiEL HCS- 360 model ATX2 (two channel)
Keeloq rolling code system - frequency: 433Mhz
can provide individual control of up to two doors
LR23A battery and
programming instructions supplied
Cardale Ref: AZAT0007
Discontinued
|
Thermaglide Installation Manual (pdf downloads)
Note: The above ANSA AURiEL keyfobs are not compatible with Henderson branded keyfobs of similar
appearance due to a difference in the factory coding but we can obtain the
Henderson version to special order >>
email us |
Click image to enlarge
 |

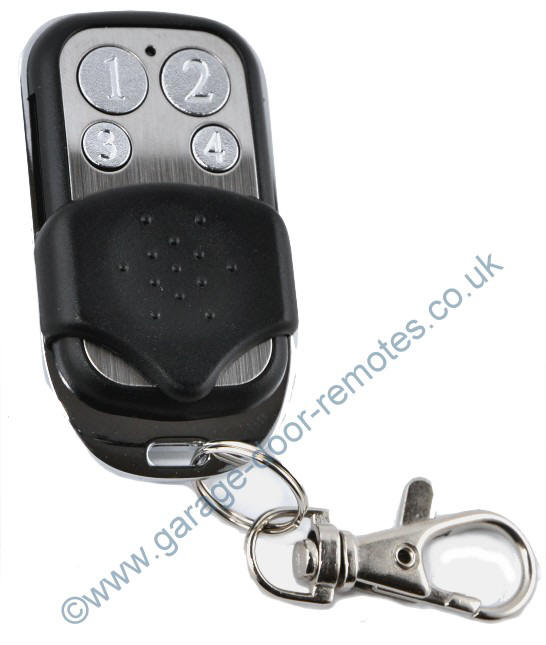

ANSA 'Metallo'
keyfob transmitter
with slide cover to prevent accidental operation
LR27A 12v battery included
dimensions 55mm x 30mm x 14mm
The Metallo can be used an alternative to the original ATX-1 & ATX-2
433Mhz
keyfobs shown above to
provide individual control of several doors.
Our Ref: ANSA Metallo
|
|
Click image to enlarge

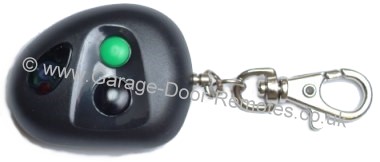

Cardale Steel-line keyfob (old case style)
discontinued -
replaced by new style below
Cardale Steel-line keyfob (new case style)
these are fully compatible with
original style shown above |

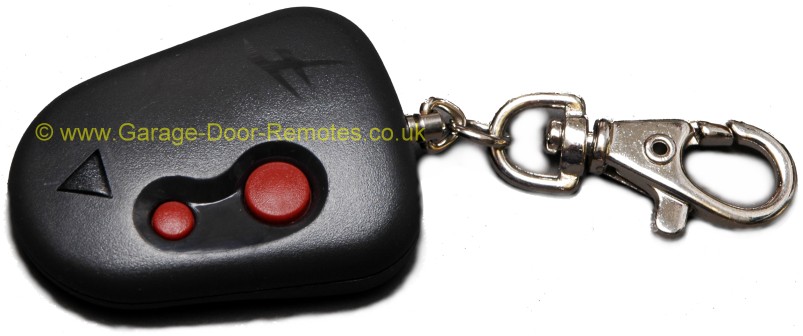

Cardale Steel-line keyfob
(as supplied from 2000 to 2007)
Operator identification:
Steel-line Uni-Lift controller, black or red box
Quantek KEYRC - frequency: 433Mhz
supplied with
LR23A battery and
programming instructions
Cardale Ref: AZAR2058
our price for one: £ excl. VAT
2-4 qty price: £ each
5+ qty price: £ each
|
Quantity Discounts
where applicable will be
calculated automatically
(just enter the quantity required and click 'Buy Now')
Compatibility
Each remote control system manufacturer uses a unique security code protocol,
therefore the above transmitters can only be used with the specific make & model
of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same
Domino numeric
digital entry keypad |
Domino external digital numeric entry system
|
The DOMINO keyless digital entry system is a simple and secure
way to open and close your garage door without the need for a key or remote control
(three 'AA' batteries included)
Our Ref: GD-1
Cardale Ref: AZAD1008
|
|
|
