Stanley Multi-Code remote control handsets
Multi-Code remote control handsets were supplied with many popular makes
of UK garage door operator including: Stanley, John Carr & Swift Challenger
Transmitter type 1083
this case style was
replaced by type 3079
pictured on the right > >

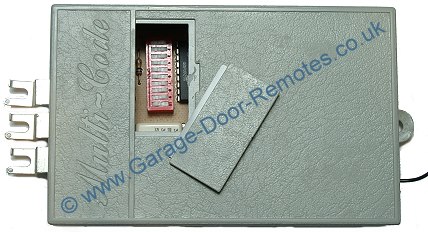

Click image to enlarge Stanley Multi-Code Receiver unit
type 1090 - 300Mhz (non UK approved)
type 2033 - 40.685Mhz - UK approved
(some 2033 units had black cases)
Stanley Multi-Code Handset type 3089 - 300Mhz frequency
type 3079 - 40.685Mhz frequency
(some 3079's had black cases)
Stanley Multi-Code
keyfob
Regretfully the above Stanley remote controls
are no longer
available so it will be necessary to
upgrade the system
Our upgrade comprises of a new remote control transmitter and
a
matching radio receiver module that can be fitted to your existing
garage
door operator within about 5 minutes with no technical knowledge

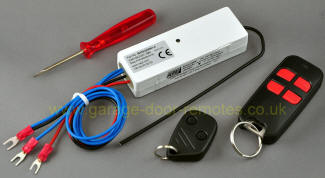

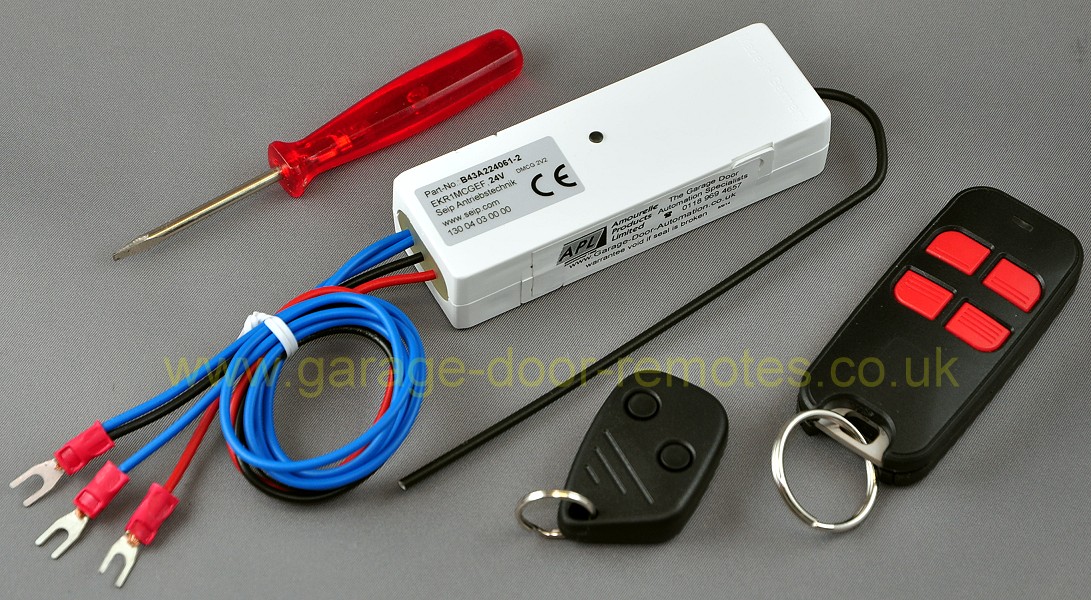

Seip EKR1MCG receiver upgrade
(illustrated with mini & midi keyfob options) receiver module dimensions 90mm x 30mm x 19.5mm
Our upgrade comprises of a 433Mhz remote control
transmitter and a
matching radio receiver module that simply replaces the original Stanley Multicode receiver to provide a quick & simple DIY upgrade.
We even supply a screwdriver !
Mini keyfob
transmitter dimensions 41mm x 26mm x 10mm
From
Germany's leading garage door operator manufacturer
An ideal upgrade for older garage door operators for which replacement handsets are no longer available
The illustration below shows a Stanley 3807 garage door operator but
our Seip EKR1MCG receiver
kit
can be connected to all Stanley models with three screw terminals
(for model ET380 click here)
Before . . . . . . . . . . and After !
Click image to enlarge

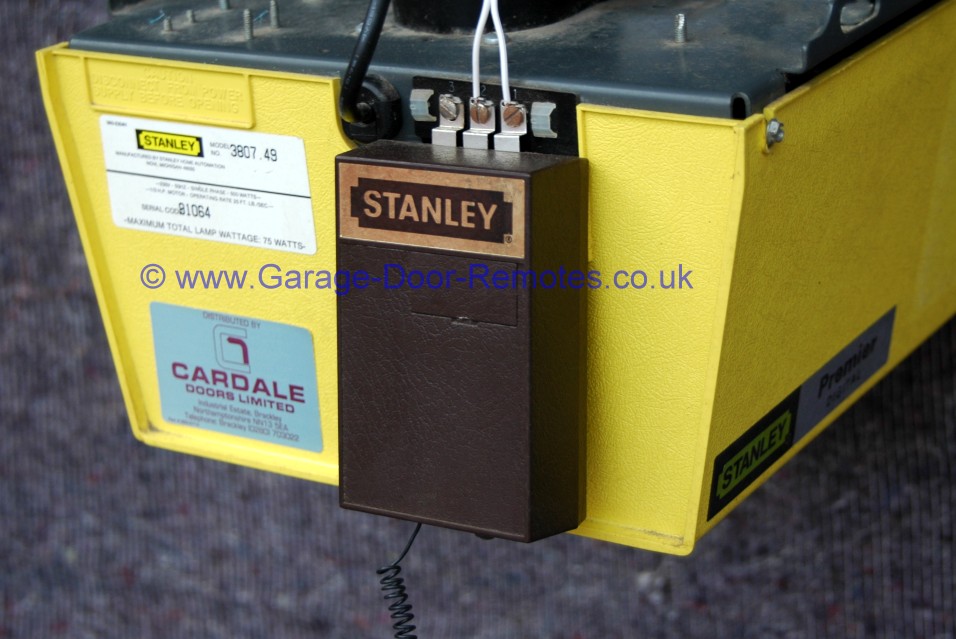

Stanley garage door operator shown with
it's original Stanley receiver unit
(brown box)
Stanley systems were supplied on 40.685Mhz,
173.3Mhz and 300Mhz radio frequencies, our
Seip
upgrade receiver can be used regardless
of
the frequency of your original system.
Note: if your Stanley receiver is the 173.3Mhz
type it must be removed prior to installing the
new Seip receiver unit(see F.A.Q.)
The two core bell wire from the
pushbutton switch
(if fitted)
should remain connected as before
(see white wires in the above images)
Ignore the wording on the label below the three terminals on the
Stanley operator as it's incorrect!
The left terminal is
the '24V' supply and the right
terminal
is 'COM' (common) as shown in the schematic diagram.
Click image to enlarge

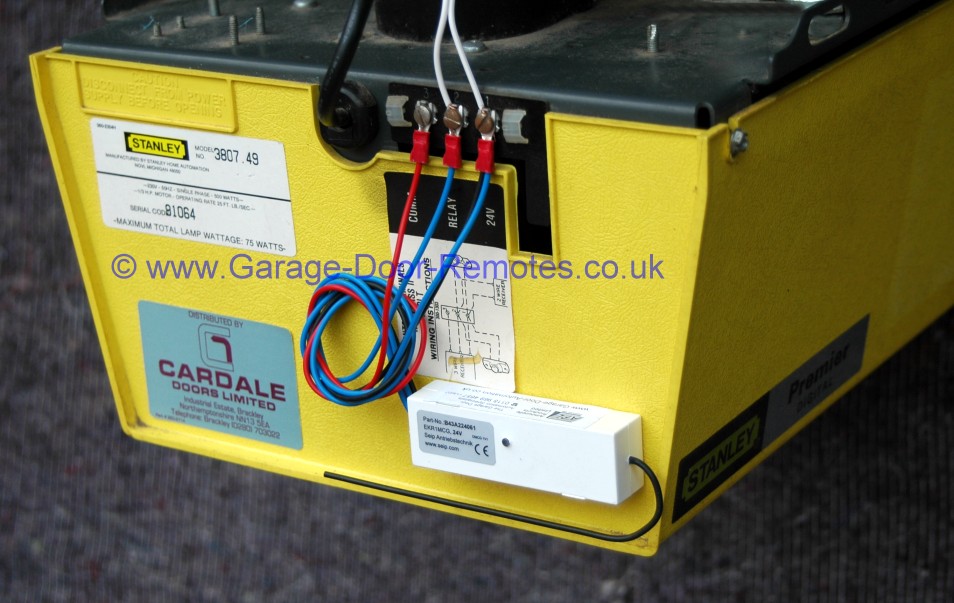

Stanley garage door operator fitted with new
Seip 433Mhz upgrade receiver type EKR1MCG
(white module)
Fitting procedure:
Slacken the three terminal screws
approximately four turns only then remove the original receiver unit, connect the three coloured wires from the new Seip
EKR1MCG radio receiver module to the screw terminals as follows:
black/blue wire to RH terminal
blue wire to centre terminal
red wire to left terminal
Re-tighten the three terminal screws and attach
the new Seip receiver to the rear panel using the
self-adhesive pads provided
as illustrated above
Note: It's essential that your electric operator functions normally
from the
wired-in pushbutton so
please confirm that your door works properly
from this before ordering a Seip remote control
upgrade.
If a
pushbutton switch has not been installed you can test your operator by
briefly linking the pushbutton terminals on your
door operator unit together with a metal object, (center & right terminals
as illustrated
here) this should start the door moving.
For wiring details and illustrations showing the Seip 24
volt
receiver
unit fitted to other
garage door operators
click here
Note regarding Stanley model ET380 garage
door operator
Unlike most Stanley models, the ET380 has an internal radio
control receiver
with no provision for powering an alternative external 24 volt receiver so a 230 volt mains powered receiver kit
will be required click here for details
Can be installed and working
within about
5 minutes with
no technical knowledge
Don't just take our word for it ! -
Read what our customers say !
I bought our Seip EKR1MCG receiver unit to
replace the old, discontinued Stanley receiver unit of which I lost both remote
transmitters!! My email enquiries were answered very promptly and the replies
were very helpful. I have only just plucked up the courage to fit the new unit
as usually 'simple' things inevitably result in difficulties. However, it really
was the easiest transmitter to fit, and took only a few minutes; just as the
description said! Carolyn, East Ewell, Surrey.
Purchased a Seip receiver upgrade and two mini
keyfob transmitters for a Stanley garage door operator on Thursday after
receiving first class and prompt technical advice by email.
The goods arrived by First Class Recorded Delivery on Friday AM. Cannot
recommend this company enough. They got me out of a difficult spot in double quick
time and at a competitive price too. A pleasure to do business with such a good
company. Alan Dunsmore, Loughborough, Leicestershire.
Choice of keyfob style transmitter to suit your lifestyle

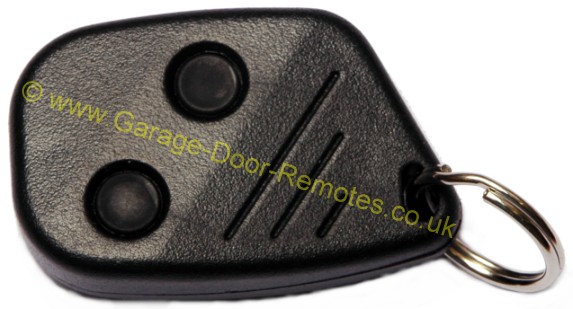

'Mini' keyfob transmitter SKRJ433 The toughest & most durable keyfob transmitter available,
it can be kept on your keyring or fitted in your car
to control up to two doors or gates dimensions 41mm x 26mm x 10mm
weight: 8gms - CR1616 lithium batteries included
'Midi' keyfob transmitter SKR433-3 can provide individual control of up to four receivers
dimensions 69mm x 32mm x 14mm
weight 24gms - CR2032 lithium battery included
Receiver unit: £ excl. VAT
(no keyfob included) Mini keyfob transmitters: £ each excl. VAT
Midi keyfob transmitters: £ eachexcl. VAT (special offer price when ordered with a
Seip EKR series receiver)
How to order: To specify the contents of your upgrade
kit, select the quantity of receiver units
required (one per door) and your desired quantities
of 'Mini' & 'Midi' keyfobs from
the drop-down lists and click 'Buy Now'
The total price for your selection
will be displayed at the checkout
UK Home
Office & CE approved for use in the UK and Europe
Conforms to MPT 1340 specification
Seip EKR1MC series receivers are compatible with the
Home-Link in-car remote control system*
as offered by the following car manufacturers as a factory fitted option:

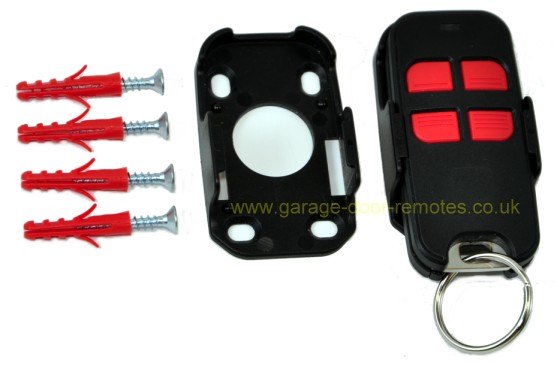

Wall holder for midi keyfob converts the Seip midi keyfob into a wireless wall control switch
(keyfob can be removed easily for portable use)
price £
excl. VAT
Click image to enlarge

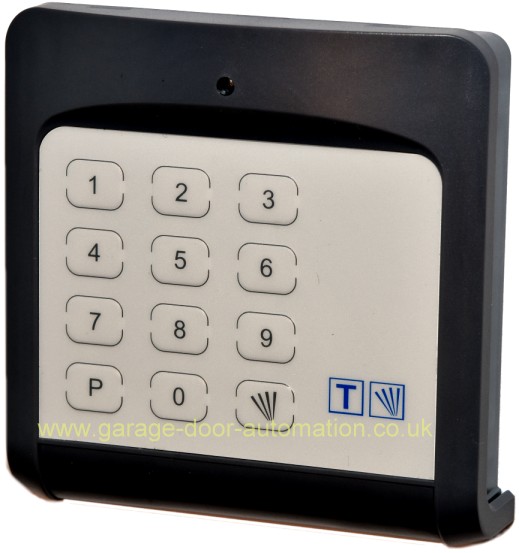

Seip wireless external digital numeric entry keypad can be programmed with up to four separate personal security codes to provide individual control of four doors or gates dimensions 83mm x 86mm x 29mm - weight: 112g (inc. batteries) Five year manufacturers warrantee
compatible with
Seip TM & TS series
door operators and Seip
EKR1MCG, EKR1MCT
&
EKR4SP433 receiver units only Two
alkaline AA batteries are included, battery life of approximately 5 years. Seip Ref: SKR4C433-1
The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control
(three 'AA' batteries included)
Our Ref: GD-1
Would you like to add remote control to your:
Garden Lighting
Water Features
Pond Pumps
or Entrance Gates ?
Seip manufacture a receiver to enable items such as gates or garden
pumps & lights etc. to be operated from spare buttons on your Seip
keyfob transmitter, the receiver is housed in a weatherproof enclosure
making it suitable for indoor or outdoor applications
Q/ If my aging electric operator fails, can the new Seip keyfobs be used with a replacement
electric operator ? A/ Yes -
Seip are Europe's leading garage door operator manufacturer and the keyfob
transmitters supplied with our upgrade kits are compatible with the
current Seip electric door operator range and if you decide to
purchase a replacement Seip electric door operator from us within 12 months of
buying a remote control upgrade we'll buy back the unwanted Seip receiver unit
at the original purchase price less 50%.
Q/ Can I use the spare
button(s) on Seip keyfobs to control other doors or items around the home ? A/ Yes - Seip produce a range of receivers to enable gates, water
pumps & lights etc. to be controlled by spare buttons on the keyfob .
Q/ Will I still
be able to use the original hand transmitters ? A/ Stanley 173.3Mhz receivers (brown case) are known to interfere
with the performance of the Seip EKR1MCG receiver resulting in very poor
range so if you have a 173.3Mhz receiver unit this must be removed, if
you have aStanley 40.685Mhz receiver this may remain connected,
and the new Seip receiver fitted beside it, this will allow both new and
old transmitters to be used to control the door (please note: you won't benefit from the improved security of the Seip rolling code
technology unless the old receiver is disconnected)
Q/ What is the range
from which I can control the door ? A/ Seip keyfobs have a range of approx. 75 - 100 Mtrs
