Remote control system upgrade kit for Slave-Dor garage door operators

01384 900 264

Remote control handset and keyfob transmitters for
electric garage door and gate operators by mail order

Secure On-Line Shopping and Same-Day despatch

Items in Basket: Total Price:

Manufacturer's
Name:

Remote control transmitters for Slave-Dor - Catmatic - Birtley - Moore-O-Matic and Ultra-Lift garage door operators
Intercontinental 173.3Mhz handset (supplied with early models)	Linear / Delta DTE 173.225Mhz handset type LIN173 (supplied with later models)
The above handsets are no longer available
dimensions 41mm x 26mm x 10mm	But No problem ! We have a convenient & easy to fit radio control system upgrade kit to suit your existing garage door operator

From Germany's leading
garage door operator manufacturer
German Quality at your Fingertips !

An ideal upgrade for older garage door operators for which replacement handsets are no longer available

Our upgrade kit comprises of a new 433Mhz remote control transmitter and
a matching radio receiver module that can be fitted to your existing garage
door operator within about 5 minutes with no technical knowledge

Click image to enlarge

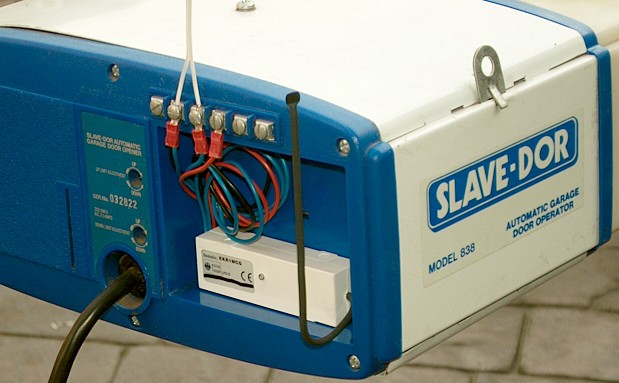

Seip EKR1MCG 433Mhz upgrade receiver (the white module)
fitted to a Slave-Dor 838 or Z233A garage door operator

Fitting procedure:

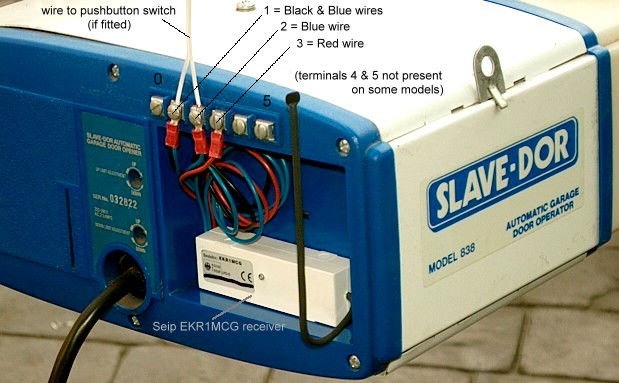

Slacken the three screw terminals marked 1, 2 & 3 approximately four turns only then remove the original receiver unit (shown right) to reveal a rectangular aperture, connect the three coloured wires from the new Seip EKR1MCG radio receiver module to the three screw terminals marked 1, 2 & 3 as illustrated here and re-tighten the terminal screws and attach the Seip receiver to the rear panel using the self-adhesive pads provided - job done!

Notes:
1/ If you are unsure whether your operator is in working order we recommend that you check the operation of the system from the wall mounted pushbutton switch before ordering the remote control upgrade. If a wall pushbutton switch has not been installed you may test the operator by shorting the wall control pushbutton switch terminals together with a metal object (terminals 1 and 2 as shown here) this should start the motor.
2/ The far left terminal (marked '0') is not used.
3/ Terminals 4 and 5 are not present on some Slave-Dor 838, Catmatic, Birtley and Moore-O-Matic Z133 operators.
4/ The two core bell wire from the wall mounted pushbutton switch (if fitted) should remain connected to terminals 1 & 2 as shown here

For Slave-Dor Rallye or Ultra models Click Here

Click image to enlarge

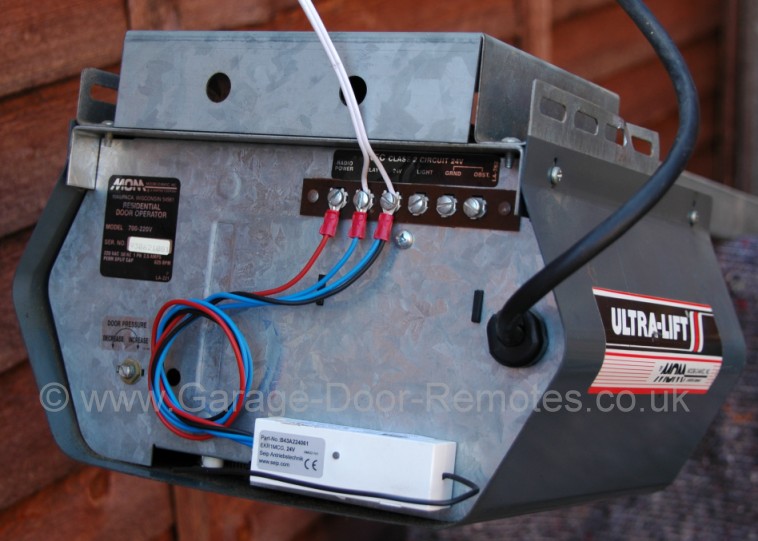

Slave-Dor 700S / Ultra-Lift 700 operator with the original DTR receiver removed and a new Seip EKR1MCG receiver fitted (the white module)

Linear 173 receiver module as fitted to
later model 838 and Z233A operators

Intercontinental receiver module
as fitted to early 838 models

A simple DIY upgrade for older garage door operators for which replacement handsets are no longer available

Click image to enlarge

Seip EKR1MCG receiver upgrade
(illustrated with mini & midi keyfob options)
receiver module dimensions 90mm x 30mm x 19.5mm

We even supply a screwdriver !

Five Year Manufacturers Guarantee

Don't just take our word for it
Read what our customers say !

Service superb and delivery of my order for a Seip EKR1MCG remote control upgrade kit for my Slave-Dor garage door operator was unbelievably fast. My only criticism is that your instructions as read by a prime technological idiot made it appear more difficult than it really was, .... I had it installed and working in 5 minutes. - Gordon Davidson, Surrey.

Incredibly fast delivery - I ordered a Seip EKR1MCG receiver upgrade kit for my Slave-Dor garage door motor at 4PM on Tuesday afternoon, I received it Wednesday 9AM and installed it very easily - fantastic range - really happy - many thanks!! - E Logue, Leicestershire.

Choice of keyfob style transmitter to suit your lifestyle
'Mini' keyfob transmitter SKRJ433 The toughest & most durable keyfob transmitter available, it can be kept on your keyring or fitted in your car to control up to two doors or gates dimensions 41mm x 26mm x 10mm weight: 8gms - CR1616 lithium batteries included	'Midi' keyfob transmitter SKR433-3 can provide individual control of up to four receivers dimensions 69mm x 32mm x 14mm weight 24gms - CR2032 lithium battery included

Receiver unit: � excl. VAT (no keyfob included)
Mini keyfob transmitters: � each excl. VAT
Midi keyfob transmitters: � each excl. VAT
(special offer price when ordered with a Seip EKR series receiver)

How to order: To specify the contents of your upgrade kit, select the quantity of receiver units required (one per door) and your desired quantities of 'Mini' & 'Midi' keyfobs from the drop-down lists and click 'Buy Now' The total price for your selection will be displayed at the checkout
	Quantity of receiver units:
	Total quantity of Mini keyfobs:
	Total quantity of Midi keyfobs:
	order before 4pm for same day despatch

• Fitting Instructions • Frequently Asked Questions •

433Mhz radio control system with secure
'rolling code' anti-scan technology - details
Range aprox 75 to 100 mtrs

Five Year Manufacturers Guarantee

UK Home Office & CE approved for use in the UK and Europe

Conforms to MPT 1340 specification

Seip EKR1MC series receivers are compatible with the Home-Link in-car remote control system*
as offered by the following car manufacturers as a factory fitted option:

compatible

Alfa Romeo
Aston Martin
Audi
Bentley
BMW

Chrysler
Jaguar
Lamborghini
Land Rover
Lexus

Maserati
Maybach
Mercedes-Benz
MINI
Porsche

Rolls-Royce
Tesla
Toyota
Volkswagen
Volvo

Note: the car must have a UK or European spec. Homelink system with software rev. 6 or later (to verify, refer to Homelink Instructions)

Spares & Accessories

• Replacement Seip Keyfobs • Spare Batteries •

Click image to enlarge

Wall holder for midi keyfob
converts the Seip midi keyfob into a wireless wall control switch
(keyfob can be removed easily for portable use)

price � excl. VAT

Click image to enlarge

Seip wireless external digital numeric entry keypad
can be programmed with up to four separate personal security
codes to provide individual control of four doors or gates
dimensions 83mm x 86mm x 29mm - weight: 112g (inc. batteries)
Five year manufacturers warrantee

compatible with Seip TM & TS series door operators and Seip
EKR1MCG, EKR1MCT & EKR4SP433 receiver units only
Two alkaline AA batteries are included, battery life of approximately 5 years.
Seip Ref: SKR4C433-1

price � excl. VAT

Domino numeric
digital entry keypad

Domino external digital numeric entry keypad

The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control
(three 'AA' batteries included)
Our Ref: GD-1

Would you like to add remote control to your:

Garden Lighting
Water Features
Pond Pumps
or Entrance Gates ?

Seip manufacture a receiver to enable items such as gates or garden pumps & lights etc. to be operated from spare buttons on your Seip keyfob transmitter, the receiver is housed in a weatherproof enclosure making it suitable for indoor or outdoor applications

Click Here for Further Details

Frequently Asked Questions

Q/ If my aging electric operator fails, can the new Seip keyfobs be used with a replacement electric operator ?
A/ Yes - Seip are Europe's leading garage door operator manufacturer and the keyfob transmitters supplied with our upgrade kits are compatible with the current Seip electric door operator range and if you decide to purchase a replacement Seip electric door operator from us within 12 months of buying a remote control upgrade we'll buy back the unwanted Seip receiver unit at the original purchase price less 50%.

Q/ Can I use the spare button(s) on Seip keyfobs to control other doors or items around the home ?
A/ Yes - Seip produce a range of receivers to enable gates, water pumps & lights etc. to be controlled by spare buttons on the keyfob .

Q/ Will I still be able to use the original hand transmitters ?
A/ Yes - by leaving your existing receiver connected and attaching a new Seip receiver in addition, both new and old transmitters can be used to control a door (please note: you won't benefit from the improved security of the Seip rolling code technology until the old receiver is disconnected)

Q/ What is the range from which I can control the door ?
A/ Seip keyfobs have a range of approx. 75 - 100 Mtrs
