Remote control system upgrade kit for Henderson garage door operators

01384 900 264

Remote control handset and keyfob transmitters for
electric garage door and gate operators by mail order

Secure On-Line Shopping and Same-Day despatch

Items in Basket: Total Price:

Manufacturer's
Name:

Remote control transmitters for
Henderson & Genie garage door operators

Henderson Transmitter
(pre 1992 type)

Intercontinental
Transmitter

Alltronik 27Mhz handset
(were also available in black)

The above hand transmitters are no longer available

But No problem !

We have a convenient & easy to fit keyfob style radio control upgrade with high security anti-scan 'rolling code' technology to suit Henderson & Genie garage door operators

Our upgrade comprises of a new 433Mhz remote control transmitter and a matching radio receiver module that can be fitted to your existing garage door operator within about 5 minutes with no technical knowledge

Click image to enlarge

Seip EKR1MCG receiver upgrade
(illustrated with mini & midi keyfob options)
receiver module dimensions 90mm x 30mm x 19.5mm

From Germany's leading garage
door operator manufacturer
German Quality at your Fingertips !
An ideal upgrade for older garage door operators for which replacement handsets are no longer available

Seip EKR1MCG upgrade receiver (the white module)
shown fitted to various Henderson / Genie screw driven electric operators

Click image to enlarge

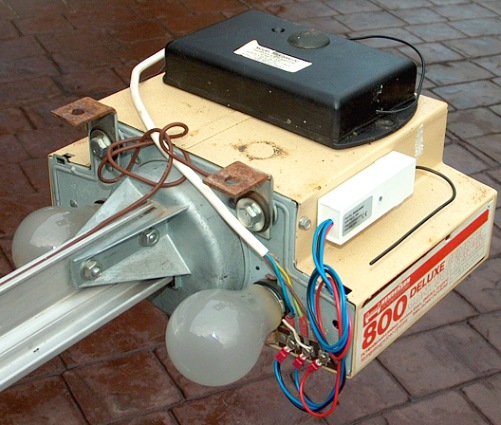

Henderson 800 deluxe electric operator

Connect the Seip EKR1MCG receiver as follows:
black/blue wire to terminal 1 (left terminal)
blue wire to terminal 2 (centre terminal)
red wire to terminal 3 (right terminal)

Click image to enlarge

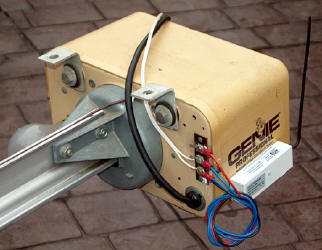

Henderson/Genie 800E / 820 electric operator

Connect the Seip EKR1MCG receiver as follows:
black/blue wire to terminal 1 (bottom terminal)
blue wire to terminal 2 (centre terminal)
red wire to terminal 3 (top terminal)

Henderson/Genie 830 electric operator

Connect the Seip EKR1MCG receiver as follows:
black/blue wire to terminal 1 (top terminal)
blue wire to terminal 2 (centre terminal)
red wire to terminal 3 (bottom terminal)

The original receiver unit can be disconnected
from the three screw terminals on the motor
unit and discarded (see F.A.Q.)

The two wires from the wall mounted
pushbutton switch (if installed) should
remain connected to terminals 1 & 2

Henderson/Genie 880 operator Click images to enlarge

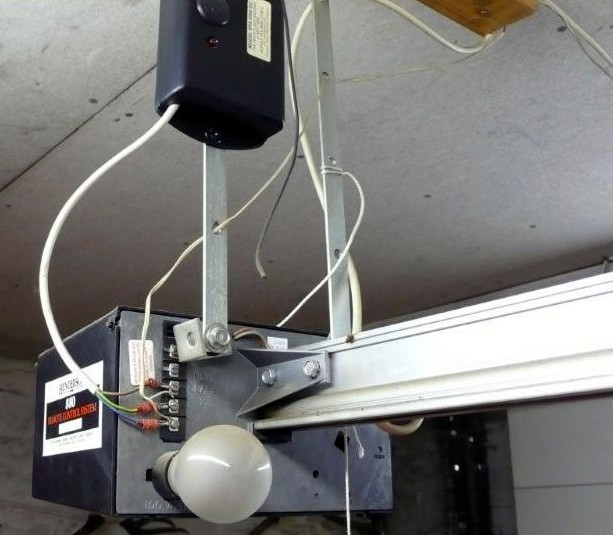

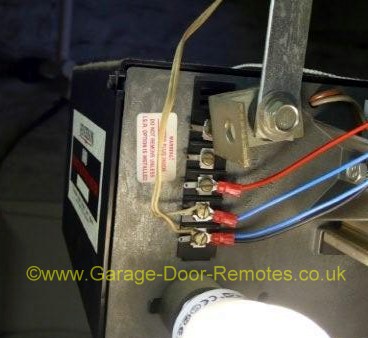

before Henderson/Genie 880 operator shown prior to the removal of the original SRX2000 receiver	after Connect the new Seip EKR1MCG receiver as follows: red wire to terminal 3 (top terminal) blue wire to terminal 2 (centre terminal) black/blue wire to terminal 1 (bottom terminal)

Click image to enlarge

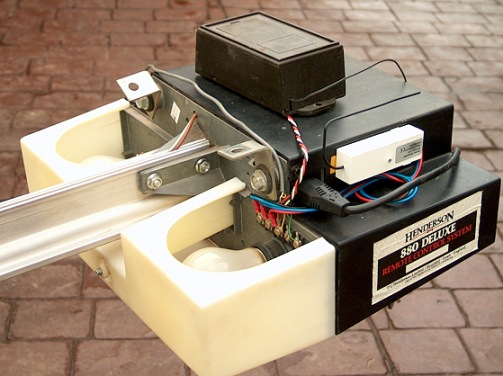

Henderson 880 deluxe/Genie Pro 88 operator

Connect the Seip EKR1MCG receiver as follows:
black/blue wire to terminal 1 (left terminal)
blue wire to terminal 2 (pushbutton)
red wire to terminal 3 (24 volt supply)

The wires from the multi-function wall mounted control
panel (if fitted) should remain connected as before. A
pushbutton switch can be connected to terminals 1 & 2

Click image for more detail

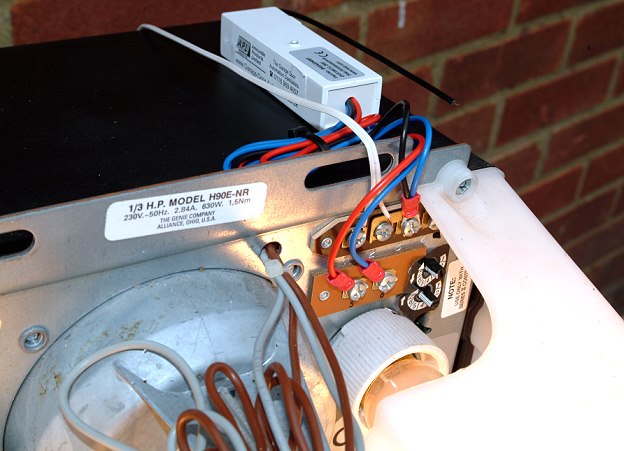

Henderson/Genie H90E electric operator

Connect the Seip EKR1MCG receiver as follows:
black/blue wire to terminal 3 (top row)
red wire to terminal 5 (bottom left)
blue wire to terminal 6 (bottom right)
(click image above for details)

The wires from the multi-function wall mounted control
panel (if fitted) should remain connected as before. A
pushbutton switch can be connected to terminals 3 & 6

Note: It's essential that your electric operator functions normally from the wired-in pushbutton so
please confirm that your door works properly from this before ordering a Seip remote control upgrade.

If a pushbutton switch has not been installed you can test your system by briefly linking the pushbutton terminals on your door
operator unit together with a metal object, this should start the door moving. (see notes above for pushbutton connections)

Note: If you have an early Henderson operator such as the model H100 with no
connections for a 24 volt receiver you will require a mains powered receiver kit

Simple D.I.Y. Installation - We even supply a screwdriver !

Can be installed and working within about
5 minutes with no technical knowledge

Don't just take our word for it ! - Read what our customers say !

I ordered a Seip EKR1MCG 24v radio receiver unit and transmitters to upgrade our old Henderson 880 garage door operator. Two of three old transmitters had given up the ghost. I was a little sceptical as to the compatibility and ease of fitting of the Seip unit but I can confirm that it took only 5 minutes. The unit works as advertised with the old receiver in place so the one remaining transmitter can be retained. The new transmitters were programmed to work with the new receivers prior to despatch and everything works perfectly. Delivery was free and within 36 hours of placing the order and prices were extremely competitive. A very satisfied customer. Les Boobis, Newcastle upon Tyne

I want to thank you for your help and advice as well as the excellent service in supplying a solution to my Henderson garage door problem. The Seip EKR1MCG remote control upgrade kit arrived two days after ordering and fitting couldn�t have been easier. I will certainly recommend Amourelle as a very knowledgeable and reliable company as well as offering great value for money. The kit worked-out as roughly 50% of the cost of the Henderson alternative. Thanks again.
Chris Williams, (Kingswinford, West Midlands).

Choice of keyfob style transmitter to suit your lifestyle
'Mini' keyfob transmitter SKRJ433 The toughest & most durable keyfob transmitter available, it can be kept on your keyring or fitted in your car to control up to two doors or gates dimensions 41mm x 26mm x 10mm weight: 8gms - CR1616 lithium batteries included	'Midi' keyfob transmitter SKR433-3 can provide individual control of up to four receivers dimensions 69mm x 32mm x 14mm weight 24gms - CR2032 lithium battery included

Receiver unit: � excl. VAT (no keyfob included)
Mini keyfob transmitters: � each excl. VAT
Midi keyfob transmitters: � each excl. VAT
(special offer price when ordered with a Seip EKR series receiver)

How to order: To specify the contents of your upgrade kit, select the quantity of receiver units required (one per door) and your desired quantities of 'Mini' & 'Midi' keyfobs from the drop-down lists and click 'Buy Now' The total price for your selection will be displayed at the checkout
	Quantity of receiver units:
	Total quantity of Mini keyfobs:
	Total quantity of Midi keyfobs:
	order before 4pm for same day despatch

• Fitting Instructions • Frequently Asked Questions •
433Mhz radio control system with secure
'rolling code' anti-scan technology - details
Range aprox 75 to 100 mtrs
Five Year Manufacturers Guarantee

UK Home Office & CE approved for use in the UK and Europe
Conforms to MPT 1340 specification

Seip EKR1MC series receivers are compatible with the Home-Link in-car remote control system*
as offered by the following car manufacturers as a factory fitted option:

compatible

Alfa Romeo
Aston Martin
Audi
Bentley
BMW

Chrysler
Jaguar
Lamborghini
Land Rover
Lexus

Maserati
Maybach
Mercedes-Benz
MINI
Porsche

Rolls-Royce
Tesla
Toyota
Volkswagen
Volvo

Note: the car must have a UK or European spec. Homelink system with software rev. 6 or later (to verify, refer to Homelink Instructions)

Spares & Accessories

• Replacement Seip Keyfobs • Spare Batteries •

Click image to enlarge

Wall holder for midi keyfob
converts the Seip midi keyfob into a wireless wall control switch
(keyfob can be removed easily for portable use)

price � excl. VAT

Click image to enlarge

Seip wireless external digital numeric entry keypad
can be programmed with up to four separate personal security
codes to provide individual control of four doors or gates
dimensions 83mm x 86mm x 29mm - weight: 112g (inc. batteries)
Five year manufacturers warrantee

compatible with Seip TM & TS series door operators and Seip
EKR1MCG, EKR1MCT & EKR4SP433 receiver units only
Two alkaline AA batteries are included, battery life of approximately 5 years.
Seip Ref: SKR4C433-1

price � excl. VAT

Domino numeric
digital entry keypad

Domino external digital numeric entry keypad

The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control
(three 'AA' batteries included)
Our Ref: GD-1

Would you like to add remote control to your:

Garden Lighting
Water Features
Pond Pumps
or Entrance Gates ?

Seip manufacture a receiver to enable items such as gates or garden pumps & lights etc. to be operated from spare buttons on your Seip keyfob transmitter, the receiver is housed in a weatherproof enclosure making it suitable for indoor or outdoor applications

Click Here for Further Details

Frequently Asked Questions

Q/ If my aging electric operator fails, can the new Seip keyfobs be used with a replacement electric operator ?
A/ Yes - Seip are Europe's leading garage door operator manufacturer and the keyfob transmitters supplied with our upgrade kits are compatible with the current Seip electric door operator range and if you decide to purchase a replacement Seip electric door operator from us within 12 months of buying a remote control upgrade we'll buy back the unwanted Seip receiver unit at the original purchase price less 50%.

Q/ Can I use the spare button(s) on Seip keyfobs to control other doors or items around the home ?
A/ Yes - Seip produce a range of receivers to enable gates, water pumps & lights etc. to be controlled by spare buttons on the keyfob .

Q/ Will I still be able to use the original hand transmitters ?
A/ Yes - by leaving the original receiver connected and attaching a new Seip receiver in addition, both new and old transmitters can be used to control a door (please note: you won't benefit from the improved security of the Seip rolling code technology until the old receiver is disconnected)

Q/ What is the range from which I can control the door ?
A/ The Seip Midi keyfob has a range of 75 to100 Mtrs whilst the smaller Mini fob offers slightly less range
