Mains powered universal remote control system for garage doors

The AP433RX2 universal remote control system is an ideal upgrade for older garage door operators for which replacement handsets are no longer available.

UT2-433EG two channel keyfob keyfob

Up to two doors or gates can be
controlled from each UT2-433EG keyfob
(The AP433RX2 is a two channel receiver unit and
may be connected to two separate door or gate motors)

This keyfob replaces the AP433TX4

Quick & simple DIY installation

Can be fitted within about 5 minutes with no technical knowledge at all!

Suits most garage door operators including Alltronik, Apex Millennium, Bosch, Chamberlain, Liftmaster, Rallye
& any other system with connections
for a wall mounted pushbutton control.

The receiver unit simply plugs into a domestic mains socket and is supplied with 7Mtrs of low voltage two core flex for connection to the wall mounted pushbutton switch terminals on a garage door operator system
(you may connect the wires from the new receiver to the terminals on your wall switch or directly to the wall switch terminals inside the electric operator casing, whichever you prefer!)

Note: It's essential that your door functions normally from the pushbutton so please confirm this before ordering a remote control upgrade kit.
(If you are unsure which terminals you need to connect to on your operator, please click here to contact our friendly technical support staff who are on standby to assist with any query.)

Click image to enlarge

AP433RX2 mains powered receiver kit
(illustrated with UT2-433EG keyfob transmitter)

receiver module dimensions 95mm x 47mm x 43mm

Receiver unit: � excl. VAT (no keyfob included)
Keyfob transmitter: � excl. VAT (for one)
(discount price for two or more keyfobs: �)

How to order: To specify the contents of your upgrade kit provide details of your door or gate operator and type of mains plug required then select the total quantity of keyfobs required and click 'Buy Now' The total price for your selection will be displayed at the checkout

	Total quantity of keyfobs:
	order before 4pm for same day despatch

• Fitting Instructions • Frequently Asked Questions •

• Product Reviews from our Customers •

12 Month Warrantee

UK Home Office & CE approved for use in the UK and Europe

Conforms to MPT 1340 specification

Spares, Accessories & Batteries

Click image to enlarge

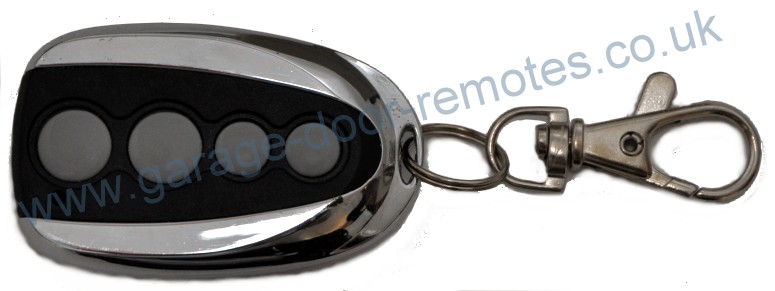

Replacement AP433TX4 keyfob transmitter
for use with AP433RX2 receivers only.
(can provide individual control of
up to four separate doors or gates)
GP27A 12v battery included (alt. ref 27A)

Click image to enlarge

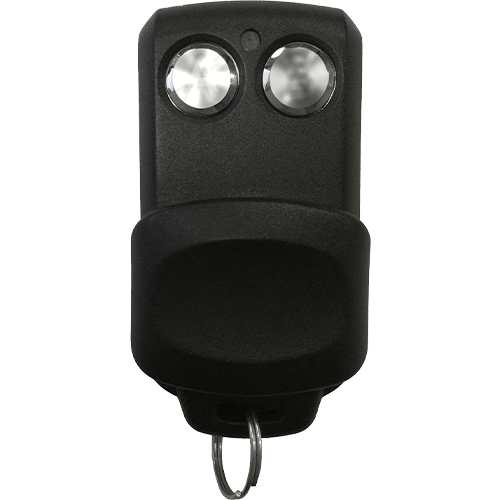

Replacement UT2-433EG keyfob transmitter
for use with AP433RX2 receivers only.
(can provide individual control of
up to two separate doors or gates)
GP27A 12v battery included (alt. ref 27A)

price for one: � excl. VAT
2+ qty price: � each

12 Volt Alkaline battery type GP27A (alt. ref 27A)
Equivalent to types: LR27A & MN27
Dimensions: L 27.5mm x 7.6mm dia.

Price: � excl. VAT
(quantity discount available on batteries,
enter quantity required to display)

Domino numeric
digital entry keypad

Domino external digital numeric entry keypad

The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control
(three 'AA' batteries included)
Our Ref: GD-1

Frequently Asked Questions

Q/ Will I still be able to use the original hand transmitters ?
A/ Yes - by leaving the original receiver connected and attaching a new AP433RX2
receiver in addition, both new and old transmitters can be used to control a door.

Q/ Can the system control more than one garage door?
A/ Yes, the AP433RX2 is a two channel receiver which can be connected to a second garage door. The keyfob transmitters can provide individual control of up to two doors (or gates)

Q/ Can any alternative remote control transmitters be used with the AP433RX2 receiver?
A/ Yes, in addition to our own UT2-433EG keyfob transmitters, the following 433Mhz
remote control transmitters from other manufacturers may also be used:
Aprimatic TR series, BFT MITT0 series, CAME TOP43 series, Fadini Jubi series, Gibidi DTR
& AU0 series, Seav Motorline 433Mhz series, Seip SKR series, Sentry SEN-H-T1 & SEN-H-T3

Q/ What is the range from which I can control the door ?
A/ Our UT2-433EG keyfobs have a range of approx. 50-75 Mtrs
