Remote control handsets |
|
Compatibility
Each remote control
system manufacturer uses a unique security code protocol,
therefore the above transmitters can only be used with the specific make &
model
of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same |
Radio
frequency
The Marantec 'Digital' remote control system was originally introduced on 418Mhz,
production switched over to the 433Mhz
frequency during mid 2000, a new 868Mhz system was introduced in 2004,
the operating frequency is identified on the back of the keyfob and on
the receiver module casing
Security
Coding
If you have an existing (working) remote control transmitter, the
unique security code can be 'cloned' from an original
transmitter using the
special
programming cable and instructions enclosed with each handset. If
you no longer have a 'working' transmitter a new transmitter
must be programmed by following the procedure in the
users instruction manual supplied with your Marantec door
operator. Copies can be downloaded from the
Marantec
website
|
|
Older Marantec Comfort series operators had
large 27Mhz handheld remote control transmitters,
(see below)
these had a ten way DIP switch inside the battery compartment to enable
a unique security code to be set to one of 1024 combinations, these
require an upgrade kit
Note: Some garage door installers have supplied an alternative brand of radio control
system with Marantec operators so you may see your handset pictured on our
main
handsets webpage |
The Marantec 'Digital' family
(418Mhz & 433.92Mhz types) |
|
Standard keyfob type 212
90mm x 47mm |
Mini keyfob type 222
60mm x 37mm |
Micro keyfob type 231
44mm x 28mm |
click here
for 418Mhz & 433.92Mhz types
|
868.3Mhz remote controls for current Marantec comfort series operators
Also compatible with 'CarTeck Teckentrup' branded door
operators
(The back of Marantec 868.3Mhz transmitters are darker than the
front)
don't
submit an order until
you've confirmed your existing system is 868Mhz
The operating
frequency is printed on the back of all
Marantec transmitters and on the receiver casing
Note:
a receiver upgrade kit is
available for older operators |
Click image to enlarge
type 302 |
Marantec 868Mhz mini keyfob type 302
dimensions:
71mm x 38mm x 16mm
case colour - light grey front and dark grey back
can provide individual
control of up to two
doors
(or gates)
supplied with 1x CR2032 battery, visor clip,
wall bracket, programming jumper plug &
programming instructions
The 302 is now discontinued, it can be replaced by the type 382-868 remote control below. |
|
| |
|
|
|
Click image to enlarge
type 382-868 two channel |
Marantec 868Mhz keyfob transmitter type 382-868
dimensions:
86mm x 39mm x 10mm
case colour - light grey
can provide individual control of up to two doors (or gates)
supplied with 1x CR2032 battery, visor clip,
wall bracket &
programming instructions
(operating frequency 868Mhz)
price per remote: £ excl. VAT
|
|
| |
|
|
|
Click image to enlarge
type 304 |
Marantec 868Mhz mini keyfob type 304
dimensions: 71mm x 38mm x 16mm
case colour - light grey front and dark grey back
can provide individual control of up to four
doors (or gates)
supplied with 1x CR2032 battery, visor clip,
wall bracket, programming jumper plug &
programming instructions
|
|
|
|
|
|
|
Click image to enlarge
type 323 |

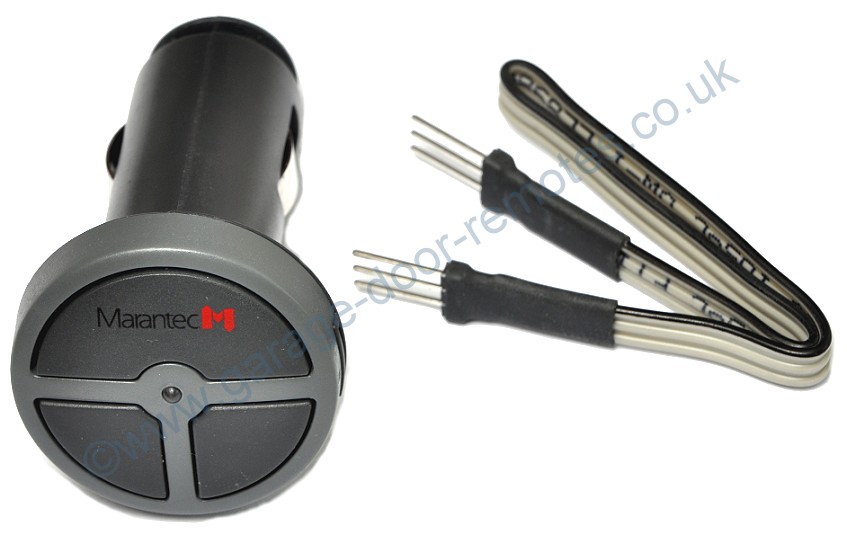

868Mhz car lighter style
transmitter type 323
dimensions: 37mm dia x overall depth 62.5mm
Powered from your car lighter socket, this transmitter can
provide individual control of
up to three garage doors
supplied with programming lead & instructions
(suits Marantec 868Mhz systems only)
Availability: discontinued
|
|
(up to 10% mixed quantity discount available on these
transmitters)
Quantity Discounts
are calculated automatically
(just enter the quantity required and click 'Buy Now')
|
Handsets
for Marantec 27Mhz models
|
If your original handset doesn't resemble any of the above types your installer may
have supplied an alternative radio remote control which you may recognize on our
main handset page |
|
If your handset is discontinued
your system
can be upgraded
with new remote controls
Click Here For Details |
Batteries & Accessories
(quantity discount available on batteries,
enter quantity required to display)
|
 |
3 Volt Lithium 'coin' battery type CR2032
to suit type 302 & 312 keyfobs
price
£
excl. VAT
|
Domino numeric
digital entry keypad |
Domino
external digital numeric entry system
The DOMINO keyless
digital entry
system is
a simple
and
secure way to open and close
your garage door
without the need for a key or remote
control
(three 'AA' batteries
included)
Our Ref: GD-1
|
|
|
