Genuine
CAME
remote control keyfob transmitters |
|
|
ATOMO series rolling code 433Mhz transmitters
Note: ATOMO keyfobs are compatible with the following
CAME rolling code
systems only: RE432RC & RBE4RC receiver and AF43SR card
Not compatible with the
CAME TOP series |
|
Click image to enlarge
 |

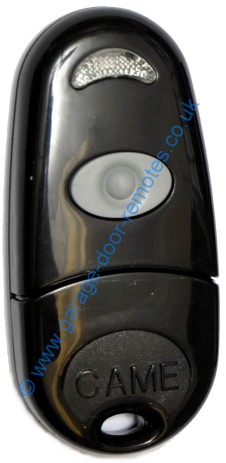

CAME Ref: AT01 single channel rolling code keyfob
dimensions: 68mm x 31mm x 11mm
Programming Instructions
two CR2016 lithium batteries included
our price: £ excl. VAT
|
|
|
|
Click image to enlarge
 |

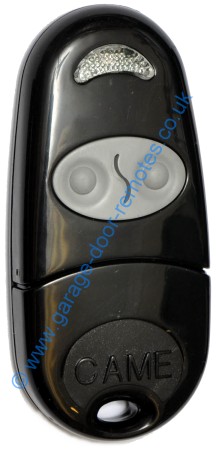

CAME Ref: AT02 two channel rolling code
keyfob
Can provide individual control of
up to two CAME ATOMO series receivers
dimensions: 68mm x 31mm x 11mm
Programming Instructions
two CR2016 lithium batteries included
our price: £ excl. VAT
|
|
|
|
Click image to enlarge
 |

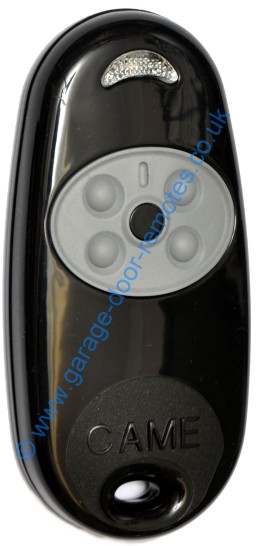

CAME Ref: AT04 four channel rolling code keyfob
Can provide individual control of up to four CAME ATOMO series receivers
dimensions: 68mm x 31mm x 11mm
Programming Instructions
two CR2016 lithium batteries included
our price: £ excl. VAT
|
|
|
 |

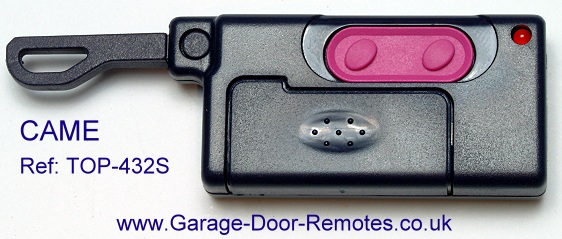

Came TOP-432S
dimensions: 63mm x 30mm x 14mm
(excluding loop)
Compatible with CAME
TOP series
433Mhz systems only, the TOP-432S
can provide individual control of up to two receivers and may
be used as an alternative to the TOP-432M (illustrated below)
12 Volt battery type LR23A included
Availability: discontinued |
|

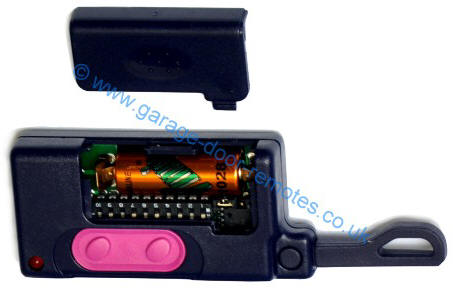

DIP switch security coding system
TOP432S transmitters have ten binary switches inside
the battery compartment to set the security code to one of 1024
combinations. To programme an additional TOP432S transmitter, open
your original keyfob transmitter and note the positions of the ten
switches inside, then open your new keyfob and set the positions of the
ten switches inside to the same sequence as those in your original
keyfob.
|
|
|
Click image to enlarge

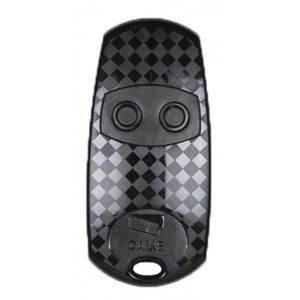

TOP-432EV |
CAME TOP-432EV
Slimline 433Mhz two channel keyfob
(replacement for TOP432S, TOP434SA & TOP42NA)
Can provide individual control of
up to two CAME TOP series 433Mhz receivers
dimensions: 69mm x 32mm x 11.5mm
Programming Instructions
two CR2016 lithium batteries included
Our price £ excl. VAT
|
|
Click image to enlarge
TOP-432NA |

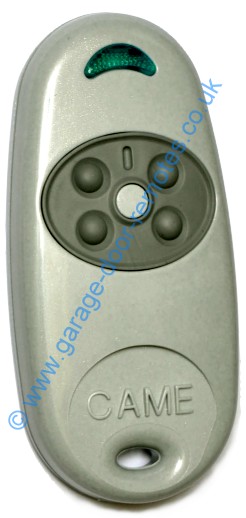

TOP-434NA
Slimline 433Mhz four channel keyfob
(replacement for TOP434SA)
Can provide individual control of
up to four CAME TOP series 433Mhz receivers
dimensions: 68mm x 31mm x 11mm
Programming Instructions
two CR2016 lithium batteries included
Our price £
excl. VAT
|
|
|
|
Quantity Discounts
are calculated automatically and apply
to mixed orders of any CAME
433Mhz
keyfob type
(just enter the quantity required and click 'Buy Now')
Compatibility
Each remote control system manufacturer uses a unique security code protocol,
therefore these transmitters can only be used with the specific make & model
of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same
|
 |

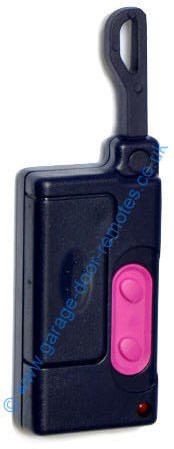

TOP-432M two channel 433Mhz keyfob
(pink buttons)
dimensions: 87mm x 40mm x 18mm
replace with TOP 432S or TOP432NA, see above
(CAME ref: TOP-434M
four channel keyfob
can be replaced with TOP434NA above) |
|
The TOP432NA &
TOP434NA slimline keyfobs will learn the security code
from an existing CAME TOP series 433Mhz transmitter
|
Batteries
& Accessories
(quantity discount available on batteries,
enter quantity required to display)
|
 |
12
Volt Alkaline battery
type GP23A
(alt. ref 23AE)
(equivalent to types: LRV08, 8LR932,
MN21, V23GA, E23A, LR23A)
price
each £
excl. VAT
|
|
|
|
|
We have a convenient keyfob style radio upgrade
kit
to suit CAME gate & garage door systems
Click Here For Details

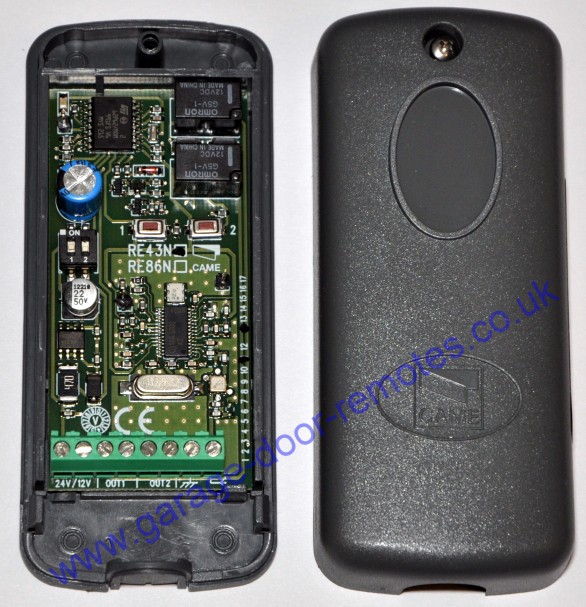

A replacement for the obsolete receiver
on most gate & garage door operators
|
01384 900 264
*
*
