Remote controls for Aperto, Duo, Marathon
& Sprint garage door operators
Note: Henderson Sprint, Duo or
Marathon garage door operators sold
in the UK between 1987 and 2005 were manufactured by Sommer |
 |
|
Henderson/Sommer Marathon, Sprint & Duo operators
produced before July 2001 and Aperto units produced before March 2002 use
40.685Mhz transmitters. 40.685Mhz operators have an external aerial wire which
is approx 2Mtrs long. Henderson/Sommer garage door operators
produced after these dates use
868Mhz keyfob transmitters, 868Mhz motor units have a short aerial wire
which is approx 30cms long.
It is essential that you order the same
frequency as your original |
|
Click image to enlarge

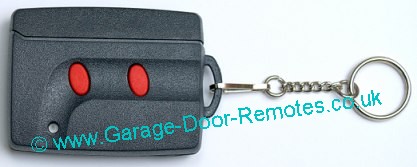

Sommer 4050 40.685Mhz
transmitter |
Sommer 40.685Mhz keyfob
transmitter
(for use with early Henderson or Sommer Marathon, Sprint, Duo &
Aperto operators to provide individual control of up to two doors)
dimensions: 60mm x 45mm x 17mm - Sommer Part No: 4050
(also known as: T397-40, TX02-40-2 and 4050V000)
programming instructions
and
12 Volt LR23A battery included
|
Click image to enlarge

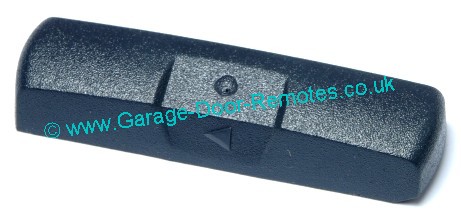

Replacement battery cover for the above |
Replacement battery cover
for
Sommer 40.685Mhz transmitter
|
|
|
Sommer 868Mhz keyfob transmitters
compatible with all 868Mhz Henderson or Sommer operators
including Aperto, Marathon, Sprint & Duo models |
Click image to enlarge

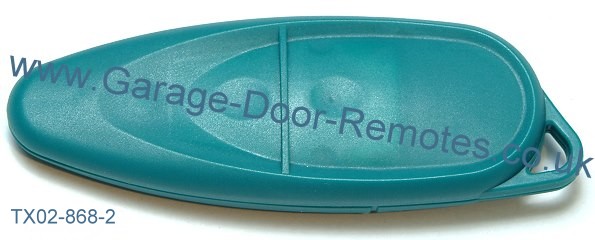

'teardrop style' 868Mhz transmitter type 4025
Note: case colour may be grey or turquoise (as
above) |
Sommer
4025 'teardrop style' two channel 868Mhz transmitter
can provide individual control of up to two doors
dimensions: 79mm x 28mm x 13mm - Sommer Part No: 4025
programming instructions and one CR2032 battery included
Discontinued line
(replace with 868Mhz transmitter type 4020 as shown below) |
| |
Click image to enlarge

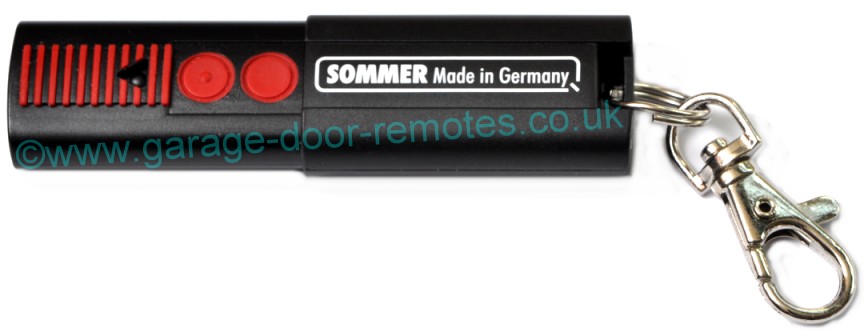

Sommer 4026 mini 868Mhz transmitter |
Sommer 4026 mini
two channel 868Mhz transmitter
can provide individual control of up to two doors
dimensions: 89mm x 24mm x 14mm
Sommer Part No: 4026
programming instructions and one CR2032 battery included
|
Click image to enlarge

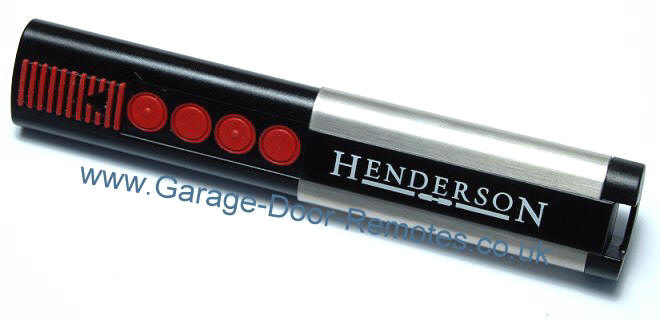

Sommer 4020 'lighter style' 868Mhz transmitter
with stainless cover to hide buttons
Note: current stocks have the Sommer logo |
Sommer 4020 'lighter style'
868Mhz transmitter
can provide individual control of up to four doors.
stainless cover slides over buttons to hide them
dimensions: 89mm x 24mm x 14mm
Sommer Part No: 4020
(also known as:TX03-868-4 and 4020V000)
programming instructions and one CR2032 battery included
price for one: £ excl. VAT
2-4 qty price: £ each
5+ qty price: £ each
|
|
|
Click image to enlarge

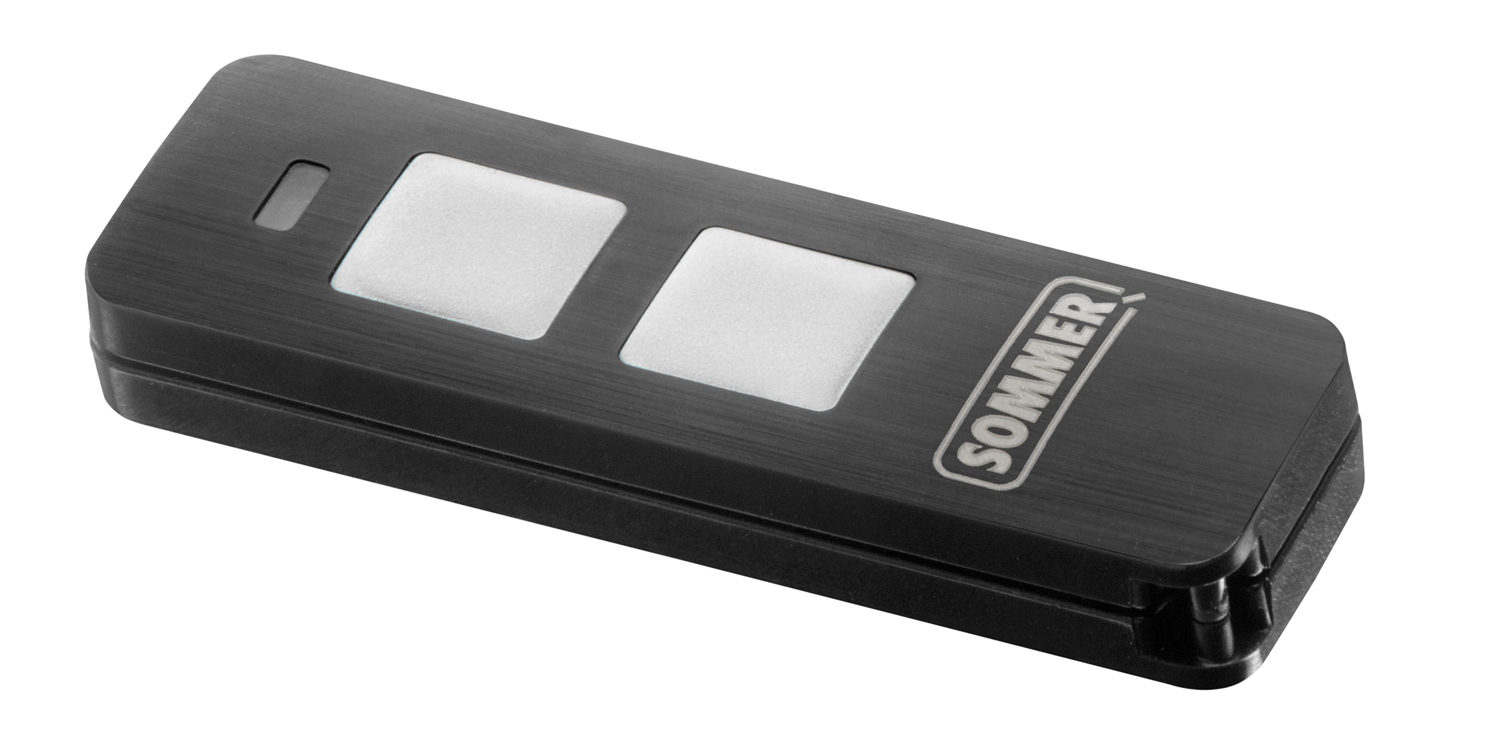

Sommer Pearl Twin 868Mhz transmitter
|
Sommer Pearl Twin
868Mhz transmitter
Disturbance-resistant radio signal
128-bit encryption
Collision resistance
Range: Approx. 50 to 140 m (depending on the surroundings)
dimensions: 79mm x 26mm x 13mm
Sommer Part No: S10019-00001
One CR2032 battery included
price per remote: £
excl. VAT
|
|
|
Click
image to enlarge

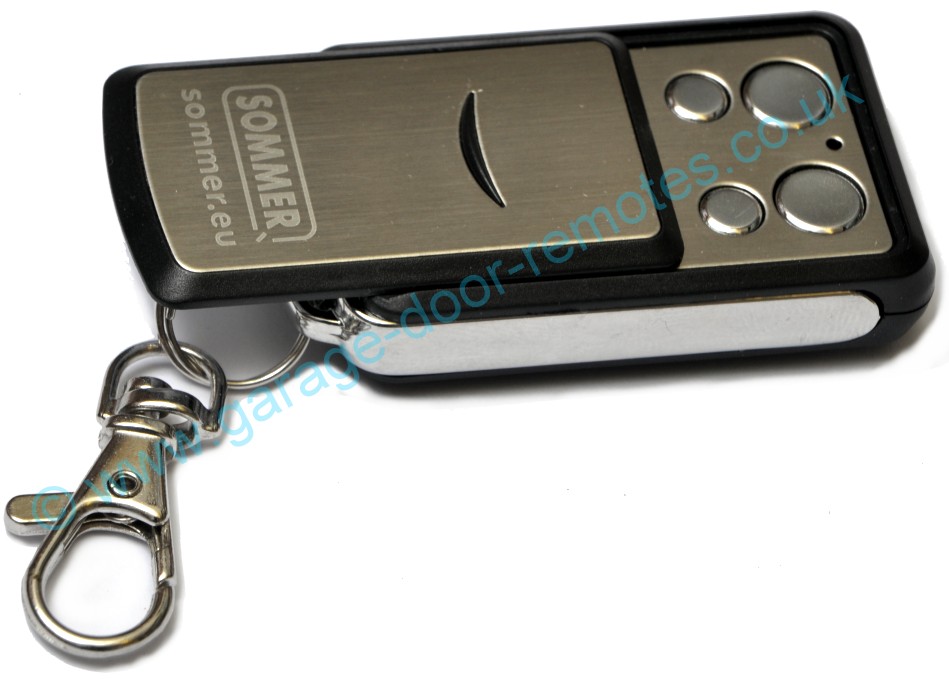

Sommer 4031 'slider style' 868Mhz transmitter |
Sommer 4031 'slider style' 868Mhz transmitter
dimensions: 62mm x 34mm x 15mm - Sommer Part No: 4031
uses one CR2032 battery
programming instructions
Availability: we no longer stock this product
but types
4020 or 4026 above can be used as an alternative |
Quantity Discounts are calculated
automatically
(just enter the quantity required and click 'Buy Now')
Compatibility
Each remote control system manufacturer uses a unique security code protocol,
therefore the above transmitters can only be used with the specific make & model
of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same
|
|
|
Remote control system upgrade
for your
Henderson /Sommer garage door operator
Click Here For Details
|
Batteries, Accessories & Spare Lamps
|
Click image to enlarge

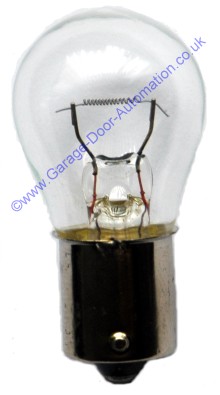

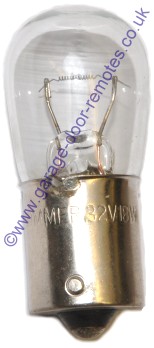

32.5 Volt 34W
bayonet type lamp |
32.5 Volt 34 Watt
bayonet type courtesy lamp
for Henderson & Sommer Sprint & Marathon operators
Sommer Ref: 11010A
price £
each
excl. VAT
|
|
|
|
Domino numeric
digital entry keypad |
Domino
external digital numeric entry system
The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control
(three 'AA' batteries included)
|
(quantity discount available on batteries,
enter quantity required to display)
|
|
 |
12 Volt Alkaline battery type GP23A
(alt. ref 23AE)
(Equivalent to types :- LR23A, LRV08, 8LR932, MN21, V23GA, E23A)
as used in Sommer TX02-40-2 40Mhz keyfobs
|
|
|
 |
3 Volt Lithium 'coin' battery type CR2032
as used in Sommer 868Mhz keyfobs
|
