Remote control handset & keyfob transmitters to suit garage door & gate operators manufactured by Chamberlain including the following popular UK brands:
Catnic AutoDor
Be sure to select the correct
frequency when ordering
replacement transmitters
How to identify the radio frequency of your system click here
We are a highly rated distributor for all genuine Chamberlain, MotorLift and LiftMaster products / spare parts.
Please contact us for information on the wide array of spares / products we can provide by clicking here.
Newer Style Transmitters to suit the 433Mhz rolling code system

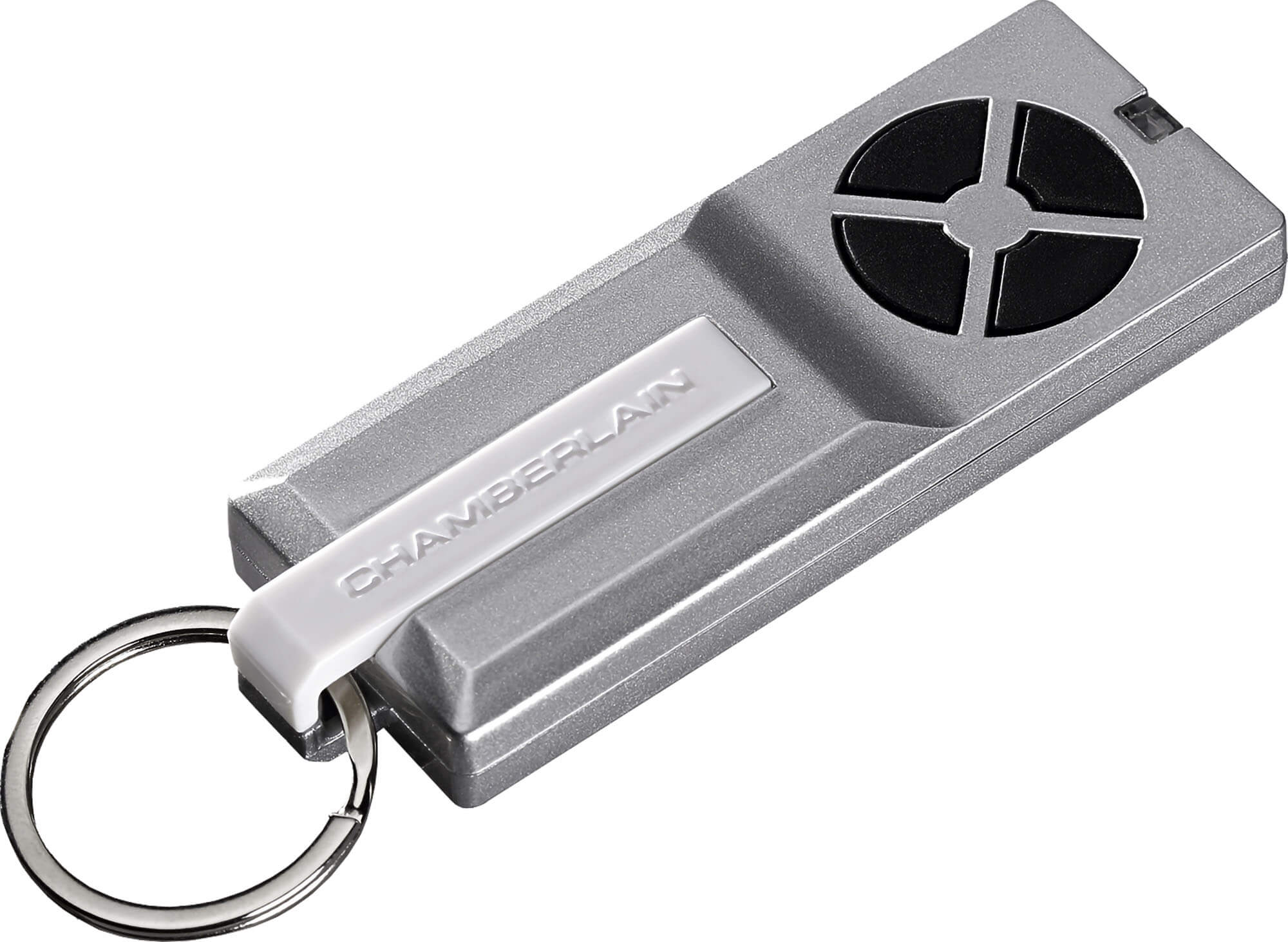

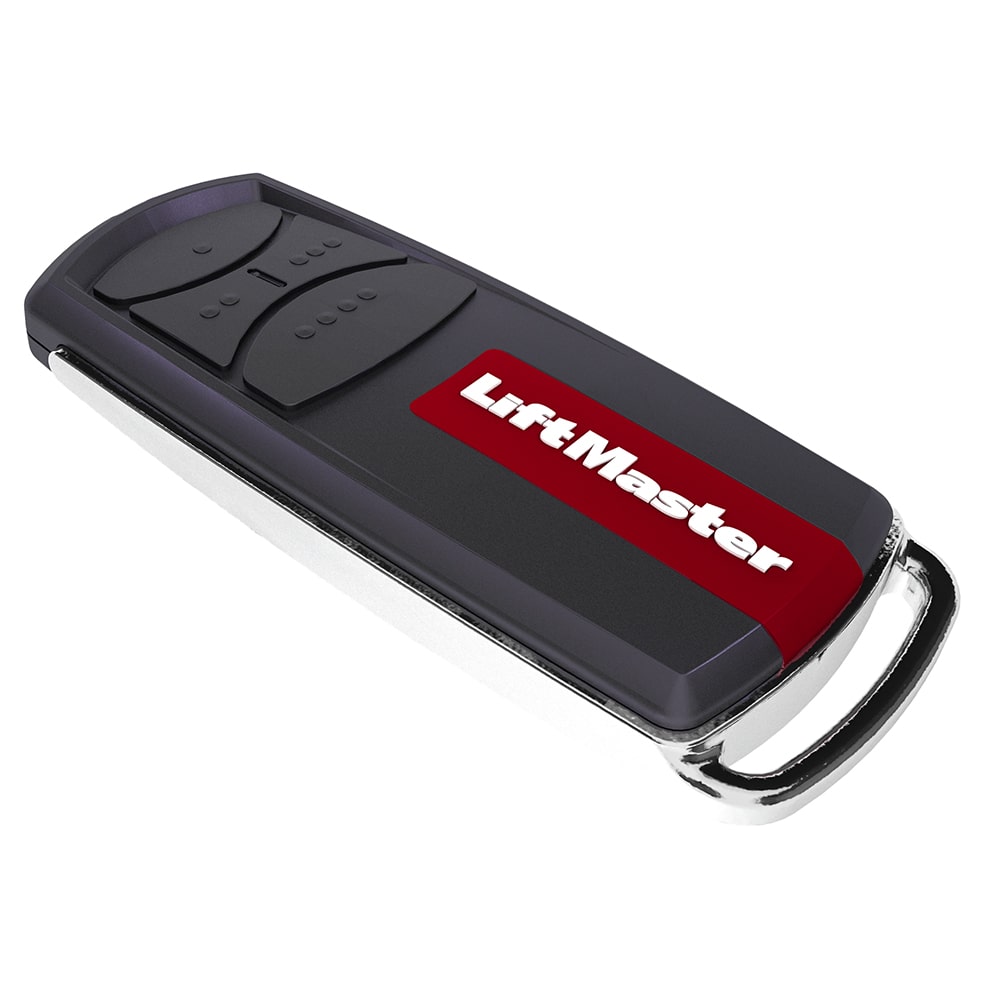

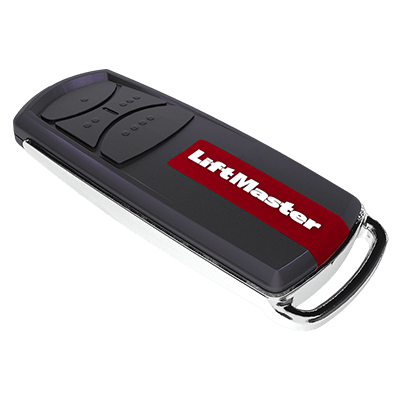

Click image to enlarge 'TX4UNIF' Universal Remote
LiftMaster TX4UNIF Universal Remote Control
(compatible with 433.92Mhz rolling code system)

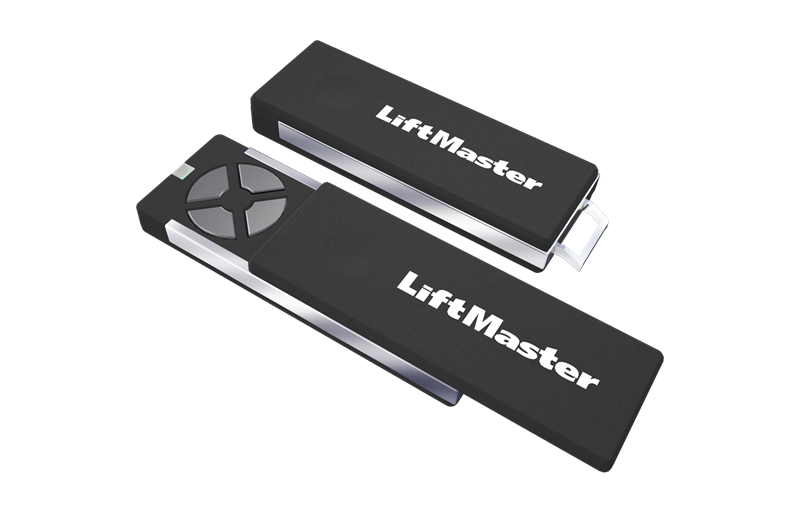

This model of transmitter works exactly the same as the LiftMaster TX4UNIS and directly replaces it, the only difference is the appearance / design.
Features:
Stylish, ergonomic car-key inspired design
White LED indicator
Large, easy to use buttons
Four channels capable of controlling up to four opener devices
Operates on the 433 MHz frequency using rolling / hopping code security
Powered by 1 x 3v CR2032 battery (included)
Easily attachable to a key ring
Instructions included
Model No: TX4UNIF price: £ excl. VAT
Compatibility
Openers
This universal transmitter can be programmed to all Chamberlain / LiftMaster gate and garage door openers that are equipped with 433 MHz wireless, including the entire LiftMaster Evolution series.
Also compatible with older openers operating on 433 MHz (manufactured up to approximately 1997).
Remotes
This transmitter can replace all previous Chamberlain / LiftMaster 433 MHz transmitters – including all 9xxxE, 8xxxE and 4xxxE series remotes.
Some other examples of models this remote can replace are TX4UNIS, TX4UNI, 94330E, 94333E, 94334E, 94335E and also the 4330E, 4333E, 4335E.

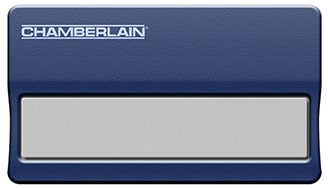

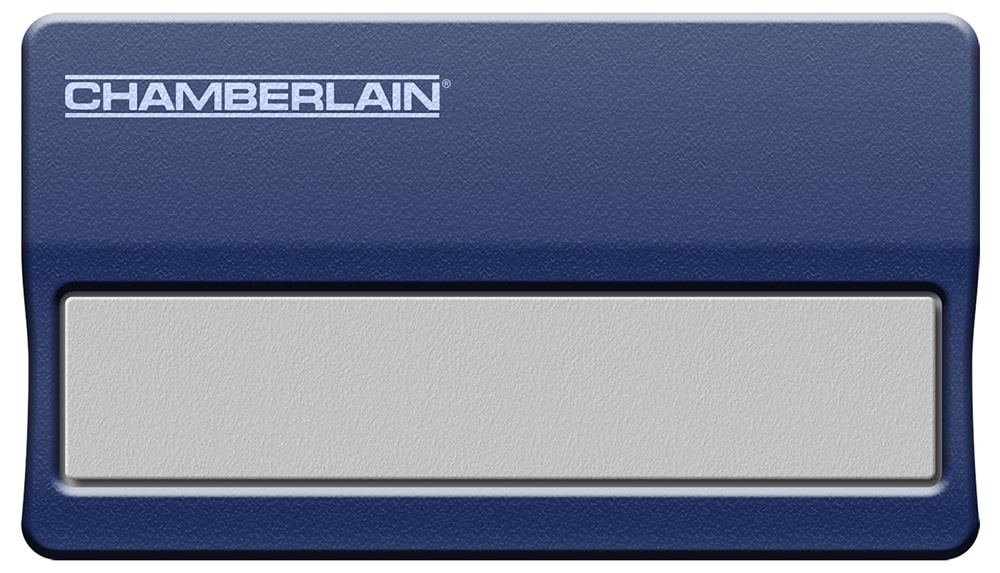

Click image to enlarge Single channel handset (old case style illustrated dimensions: 89mm x 41mm)
433Mhz single channel handset transmitter
note: the case style has been revised during the production span of this product, the current type has no LED and measures 76mm x 45mm x 16mm
two CR2032 batteries included Programming Procedure

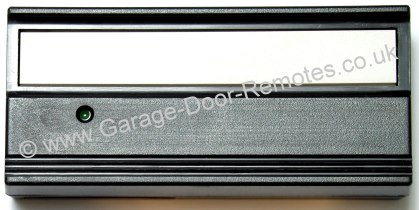

Note: the following versions of this handset are discontinued: model 4330E (433.92Mhz) Replaced by TX4RUNI / TX4UNIS model 4180E (418Mhz) upgrade requiredclick here for details
Click image to enlarge Mini keyfob transmitter (our current stock is MotorLift
brand)
433Mhz mini keyfob transmitter
dimensions: 37mm x 62mm - two CR2016 batteries included
a compact keyfob style alternative to the above hand transmitter,
it can provide individual control of up to three garage doors Programming Procedure

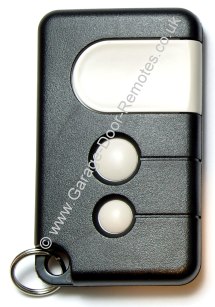

Note: the following versions of this keyfob are also discontinued: model 4185E (418Mhz) upgrade requiredclick here for details

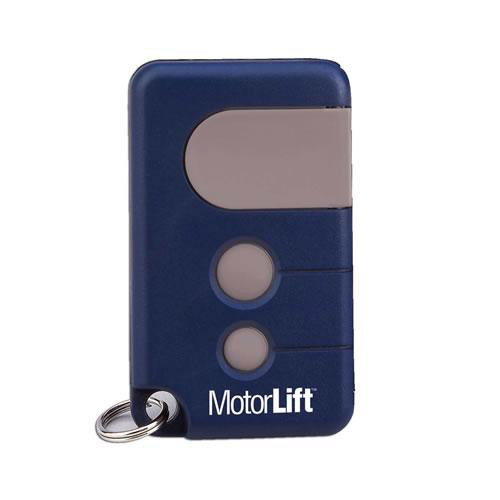

Click image to enlarge 3 channel handset - 84335E
433Mhz three channel remote control Dimensions: 62 x 36 x 11 mm
Weight: 25g
Range: approx 45m
The Chamberlain Motorlift 84335E navy blue garage remote with 3 white button
Alternative Model Numbers: 84335E, Wickes 156105, MotorLift 84335EML
More Transmitters to suit the 433Mhz rolling code system
WARNING: these are not compatible with types 4330E & 4335E shown above - click for details

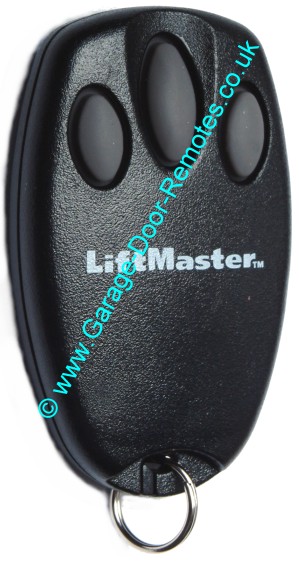

Click image to enlarge 'Bear Paw' keyfob
'Bear Paw' rolling code mini keyfob transmitter dimensions: 37mm x 60mm - one CR2032 battery included (compatible with 433.92Mhz rolling code system only
and used
on the following models: ML700, ML750, ML850,
HC100ML, HC300ML, HC400ML, HC500ML, HC600ML, LM60, LM80,
LM800, LM1000, 5580 & RDO800
The 94335E keyfob can provide individual control of up to three garage doors or gates and can be used as a direct replacement for the following rolling code transmitters: 84330E, 84333E, 84335E, 94330E,
94333E, 94334E, 132B2372
& 1A5639-7 Programming Procedure
model 94335E (alt. ref CHAM94335) Replaced by TX4RUNI / TX4UNIS
Quantity Discounts where applicable will be
calculated automatically by our on-line shopping system
(just enter the quantity required and click 'Buy Now')

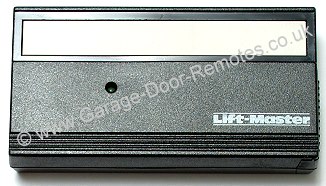

Click image to enlarge Single channel - 750E
model 750E single channel factory pre-programmed 27Mhz handset - dimensions:102mm x 53mm compatible with 27Mhz operators with a green 'Smart' learn button includingmodels: 420E, 4210E & 5250E uses one 9V PP3 battery
model 751E single channel 27Mhz handset with nine user-selectable security code switches dimensions: 102mm x 53mm compatible with models: 350E-2 & 3750E uses one 9V PP3 battery

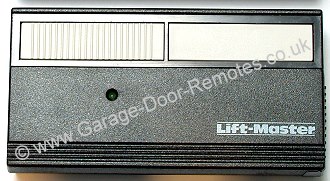

model 752E two channel 27Mhz transmitter with nine user-selectable security code switches dimensions: 102mm x 53mm (can provide individual control of two garage doors) compatible with models:350E-2, 3750E and 'smart learn' models: 420E,4210E & 5250E uses one 9V PP3 battery

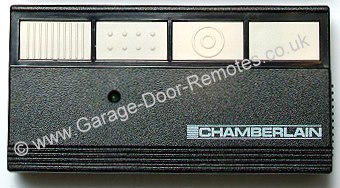

model 754E four channel 27Mhz handset dimensions: 102mm x 53mm (for individual control of up to four garage doors) compatible with models: 350E-2, 3750E and 'smart learn' models: 420E, 4210E & 5250E uses one 9V PP3 battery
Programming procedure for types 751E, 752E & 754E: Set the nine 'three position' switches inside to the same sequence as the switches inside your original transmitter
Compatibility Each remote control system manufacturer uses a unique security code protocol, therefore these transmitters can only be used with the specific make & model of equipment for which they were intended and will not be compatible with any other make of remote control system even if the radio frequency is the same
(27Mhz transmitters measure 102mm x 53mm and use a 9 volt battery, the receiver aerial wire measures aprox. 220cms on all 27Mhz systemsmore information)
All Chamberlain operators can be easily upgraded to the latest UK approved radio frequency with our radio upgrade kit
Batteries & Accessories (quantity discount available on batteries, enter quantity required to display)
12 Volt Alkaline battery type GP23A (alt. ref 23AE) (equivalent to: LRV08, 8LR932, MN21, V23GA, E23A, LR23A) to suit 418Mhz & 433Mhz handsets (not mini keyfob) price each £
excl. VAT
Two 3 Volt Lithium 'coin' batteries type CR2016 (two used in type 4335E keyfob) price (for two) £
excl. VAT
3 Volt Lithium 'coin' battery type CR2032 (two used in 4330E and 94335E keyfobs) price each £
excl. VAT

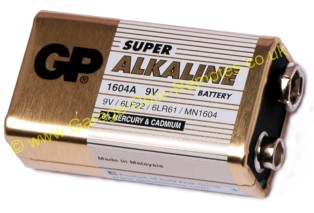

9 Volt Alkaline battery type 6LF22 as used in all 27Mhz chamberlain handsets (equiv to types 6LR61, MN1604, PP3) Our Ref: 6LF22
Discontinued
Domino digital numeric entry keypad
The DOMINO keyless digital entry system is a
simple and secure way to open and close your garage door without the need for a key or remote
control
(three 'AA' batteries included)
Our Ref: GD-1
How to identify the operating frequency of your system
The operating frequency can be found on the identification label printed on the back of the original handset as follows: models 750E, 751E etc. = 27Mhz models 4180E, 4185E etc. = 418Mhz models 4330E, 4335E etc. = 433Mhz 94330E, 94335E etc. = 433Mhz rolling code
418Mhz and 433Mhz Chamberlain motor units have an aerial wire approx. 40cms.in length.
Approximate guide by year of manufacture:
Chamberlain's current 433.92Mhz rolling code system
was introduced in 2004 and is used on the following door operators:
ML700, ML750, ML850, HC100ML, HC300ML, HC400ML, HC500ML, HC600ML, LM60,
LM80,
LM800,
LM1000, LM3850ASA, 5580 & RDO800
The original Chamberlain 433.92Mhz system was introduced during 2001. Operators fitted with the 433.92Mhz radio system have a label displaying '433'
or a model number with the suffix '433'
The 418Mhz frequency was used from aprox. 1997 to 2001, the model number of these motor units had the suffix 'UK', '418' or 'EGB-418'. These transmitters are discontinued so a
radio
system upgrade
is required.
Note: The 418Mhz frequency was withdrawn from public use by the Home Office in December 2007 and re-allocated to the European TETRA radio system for the emergency services. (see the Radiocommunications Agency website for details)
27Mhz operators (manufactured pre 1997) Chamberlain models: 350E-2, 3750E and 'smart learn' models: 420E, 4210E & 5250E manufactured before 1997 operated on the 27Mhz frequency and had a receiver aerial wire aprox.
220cms long attached to the motor unit. 27Mhz Chamberlain handsets
measure 102mm x 53mm and use a 9 volt PP3 battery.
Note: very early Chamberlain operators used Alltronik remote
controls, these will require
a radio
system upgrade.
Can't Identify your system? If you are unable to positively identify which type of remote control transmitter was originally supplied with your operator from the information above, or your original transmitter is discontinued, our radio
system upgrademay be used as this system is suitable for all models regardless of the original radio frequency.
Security Code System
Chamberlain 418Mhz & 433Mhz transmitters are factory pre-programmed to one of 3.5 billion codes and the system features a 'smart learn' receiver capable of learning the unique security codes of up to 8 separate handsets
Programming Procedure 1. Locate the 'learn' button on the casing of the motor unit and press it briefly. (green or orange button) The learn indicator light will glow steadily for 30 seconds. 2. Within 30 seconds, press and hold the button on the hand-held remote that you wish to operate your garage door. 3. Release the button when the opener light blinks. It has learned the code. If the light bulb is not installed, two clicks will be heard.
Clearing the memory(advisable if a handset has been lost or stolen) Locate the 'learn' button on the casing of the motor unit and press and hold the button until the learn indicator light goes out (approximately 6 seconds). All previous codes are now erased. Reprogram each remote or keyless entry pad you wish to use as described above
Chamberlain 27Mhz remotes
Model 420E, 4210E & 5250E garage door operators have a green 'smart learn' button for programming and these operators will accept model 750E factory pre-programmed 27Mhz single channel handsets (to control one door) as well as the alternative multi-channel handset models 752E (two channel) or 754E (four channel)
If you have an older pre 'smart learn' operator such as model 350E-2 or 3750E you will require a user programmable handset with a nine way tri-position DIP switch inside to enable your unique security code to be set to match the code in your existing hand transmitter handset models 751E, (single channel) 752E (two channel) or 754E (four channel)
Be sure to select the correct type when ordering replacements
We are a highly rated distributor for all genuine Chamberlain, MotorLift and LiftMaster products / spare parts.
Please contact us for information on the wide array of spares / products we can provide by clicking here.
