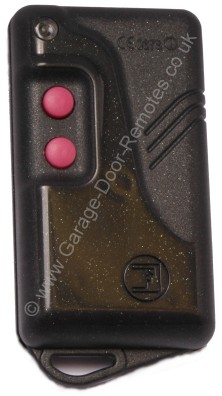

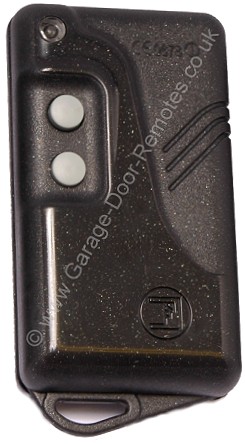

Astro
type 43/2T |
Fadini Astro 43 series keyfob transmitters
(frequency 433.92Mhz)
Programming Procedure |
|
Astro 43
two channel keyfob transmitter type
43/2T
for individual control of up to two Fadini 433Mhz receivers
dimensions: 82mm x 42mm x 17mm - radio frequency 433.92Mhz
Note: identified by pink colour buttons
Availability: discontinued
(replaced by Piccolo keyfob type P43/2T below)
|
|
| |
|
Click image to enlarge

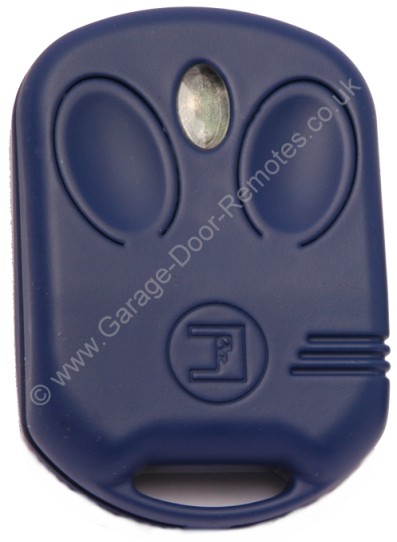

Astro Piccolo type P43/2T |
Astro 43 Piccolo two channel mini keyfob
type P43/2T
for individual control of up to two Fadini 433Mhz receivers
radio frequency 433.92Mhz
(this is a direct replacement for the two button version
of the case style with pink buttons as shown above)
LR23A battery included
This remote control is now discontinued. It can be replaced with the Divo 71 4 channel remote.
|
|
| |
|
Click image to enlarge

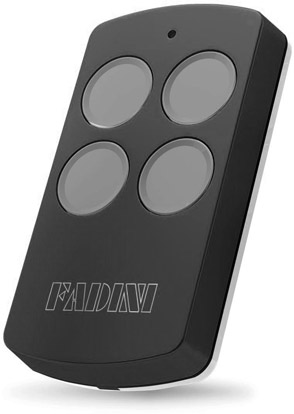

DIVO71 Remote Control |
Divo 71 four channel remote control
radio frequency 433.92Mhz
(this is a direct replacement for the two button Astro 43 Piccolo. Divo can also replace the smaller Jubi keyfob).
Supplied in Skyline Gray colour
price for one: £ excl. VAT
2-4 qty price: £ each
5+ qty price: £ each |
|
| |
|
|
Click image to enlarge

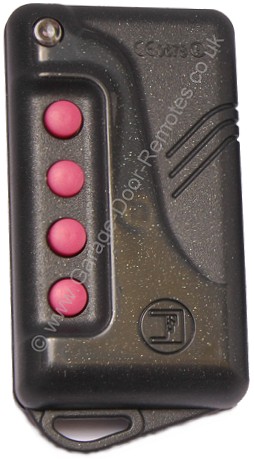

Astro type 43/4T |
Astro 43
four channel keyfob transmitter type 43/4T
for individual control of up to four Fadini 433Mhz receivers
dimensions: 82mm x 42mm x 17mm - radio frequency 433.92Mhz
Note: identified by pink colour buttons
LR23A battery included
price for one: £ excl. VAT
2-4 qty price: £ each
5+ qty price: £ each |
|
Quantity Discounts are calculated automatically
(just enter the quantity required and click 'Buy Now') |
|
|
Programming Procedure
Fadini Astro 43 series transmitters
use DIP switch type security coding and have ten binary switches inside to set
the security code to one of 1024 combinations. To programme an additional
transmitter, open your original keyfob transmitter and note the positions of the
ten switches inside, then open your new keyfob and set the positions of the ten
switches inside to the same sequence as those in your original Astro keyfob(s)
Compatibility
Each remote control system manufacturer uses a unique
security code protocol, therefore a Fadini transmitter can only be used with the specific make
& model of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same |
|
Click image to enlarge

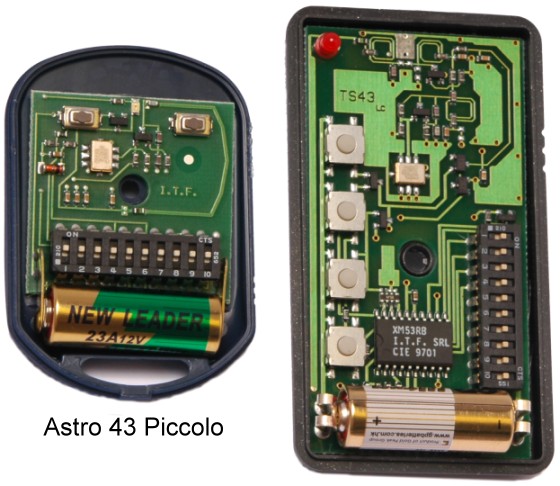

internal view showing DIP switches |
|
|
|
| |
Fadini Jubi 433Mhz rolling-code keyfob transmitter
Note: these are not compatible
with the Fadini Astro series |
|
Click image to enlarge

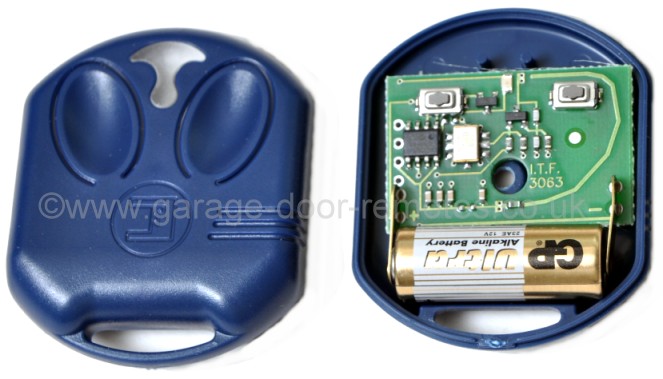

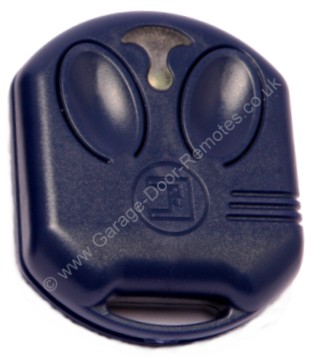

Jubi keyfob type F/J2T |
Fadini Jubi two channel rolling code mini keyfob type F/J2T
for individual control of up to two Fadini Jubi series 433Mhz rolling code receivers
dimensions: 48mm x 40mm x 14mm - dark blue body
Radio frequency: 433.92Mhz
LR23A battery included
Programming Procedure
price: £ excl. VAT
|
|
|
www.garage-door-remotes.co.uk are a specialist
mail order supplier of remote control transmitters
We do not
supply any other spares for BPT or Fadini equipment |
|
