Remote control upgrade for Dura-Lift 4500 electric door openers

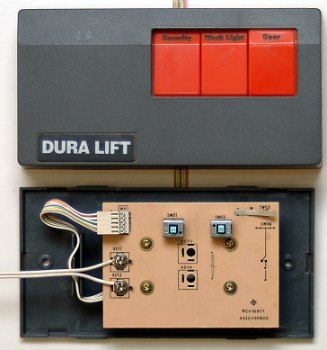

The system comprises of a new 433Mhz radio receiver which replaces the original 40.685Mhz or 49.900Mhz Dura-Lift remote controls UT2-433EG two channel keyfob keyfob Up to two doors or gates can be controlled from each UT2-433EG keyfob (The AP433RX2 is a two channel receiver unit and may be connected to two separate door or gate motors) This keyfob replaces the AP433TX4 Simple D.I.Y. Installation Quick & simple DIY installation, our upgrade kit can be fitted to your existing Dura-Lift 4500 garage door operator in minutes without any technical knowledge!		The receiver unit is supplied with a 13A mains plug type power adaptor & 7Mtrs of low voltage flex and simply plugs into a normal household mains socket and connects by two wires to the low voltage wall mounted pushbutton switch connections on your existing Dura-Lift 4500 garage door operator. as illustrated below Click image to enlarge Connect the pair of wires from the new AP433RX2 receiver to terminals marked SK1' & 'SK2' inside the wall control panel This upgrade can be fitted to most garage door operators including Alltronik, Bosch, Chamberlain, Liftmaster, Merlin, Rallye & any other system with connections for a wall mounted pushbutton control
Note: The AP433RX2 remote control upgrade receiver unit connects to the same wiring as the wall mounted control panel therefore it's essential that your door functions normally from the 'Door' pushbutton so please make sure your door works from this button before ordering a remote control upgrade kit.
Click image to enlarge AP433RX2 mains powered receiver unit (illustrated with UT2-433EG keyfob transmitter)

Receiver unit: � excl. VAT (no keyfob included) Keyfob transmitter: � excl. VAT (for one) (discount price for two or more keyfobs: �)
How to order: To specify the contents of your upgrade kit, select your desired quantity of keyfobs from the drop-down lists and click 'Buy Now'	Total quantity of keyfobs required:
	order before 4pm for same day despatch
The total price for your selection will be displayed at the checkout

• Fitting Instructions • Frequently Asked Questions •

• Product Reviews from our Customers •

12 Month Warrantee

UK Home Office & CE approved for use in the UK and Europe

Conforms to MPT 1340 specification

Spares, Accessories & Batteries

Click image to enlarge

Replacement AP433TX4 keyfob transmitter
for use with AP433RX2 receivers only.
(can provide individual control of
up to four separate doors or gates)
GP27A 12v battery included (alt. ref 27A)

Click image to enlarge

Replacement UT2-433EG keyfob transmitter
for use with AP433RX2 receivers only.
(can provide individual control of
up to two separate doors or gates)
GP27A 12v battery included (alt. ref 27A)

price for one: � excl. VAT
2+ qty price: � each

12 Volt Alkaline battery type GP27A (alt. ref 27A)
Equivalent to types: LR27A & MN27
Dimensions: L 27.5mm x 7.6mm dia.

Price: � excl. VAT
(quantity discount available on batteries,
enter quantity required to display)

Domino numeric
digital entry keypad

Domino external digital numeric entry keypad

The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control
(three 'AA' batteries included)
Our Ref: GD-1

Frequently Asked Questions

Q/ Will I still be able to use the original hand transmitters ?
A/ Yes - by leaving the original receiver connected and attaching a new AP433RX2
receiver in addition, both new and old transmitters can be used to control a door.

Q/ Can the system control more than one garage door?
A/ Yes, the AP433RX2 is a two channel receiver which can be connected to a second garage door. The keyfob transmitters can provide individual control of up to two doors (or gates)

Q/ Can any alternative remote control transmitters be used with the AP433RX2 receiver?
A/ Yes, In addition to our own UT2-433EG keyfob transmitters, the following 433Mhz
remote control transmitters from other manufacturers may also be used:
Aprimatic TR series, BFT MITT0 series, CAME TOP43 series, Fadini Jubi series, Gibidi DTR
& AU0 series, Seav Motorline 433Mhz series, Seip SKR series, Sentry SEN-H-T1 & SEN-H-T3

Q/ What is the range from which I can control the door ?
A/ Our UT2-433EG keyfobs have a range of approx. 50-75 Mtrs
