| keyfob remote control transmitters for Gibidi gate and garage door operators | Our prices include VAT |
Click to enlarge image

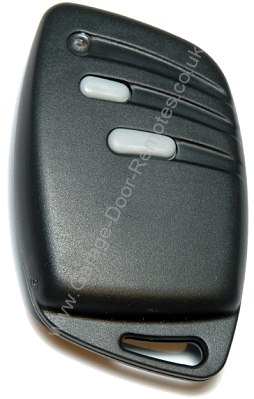

Gibidi AU01600
| | Type AU01600 - two channel rolling code transmitter | can provide individual control of up to two receivers
Frequency 433.42Mhz - LR23A battery included
dimensions: 65mm x 40mm x 14.5mm - weight 20gms
price for one £34.75 inc. VAT
price for two £29.53 each inc. VAT
(up to 15% mixed quantity discount available on this item)
Qty in stock:
| | | Battery replacement: remove the small retaining screw from under the label on rear |
|
Click to enlarge image

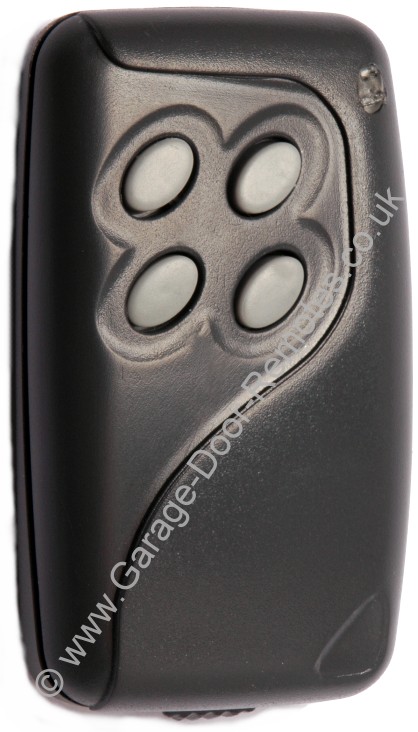

Gibidi AU01680 | | Type AU01680 - four channel rolling code transmitter | can provide individual control of up to four receivers
Frequency 433.42Mhz - LR23A battery included
dimensions: 75mm x 43mm x 20mm - weight 32gms
price for one £36.95 inc. VAT
price for two £32.26 each inc. VAT
(up to 20% mixed quantity discount available on this item)
Qty in stock:
Note: this case style will be available until stocks are exhausted
(replaced by the new Domino case style below which is fully compatible) | | | Battery replacement: press the release button on lower edge to open casing |
|
Click to enlarge image

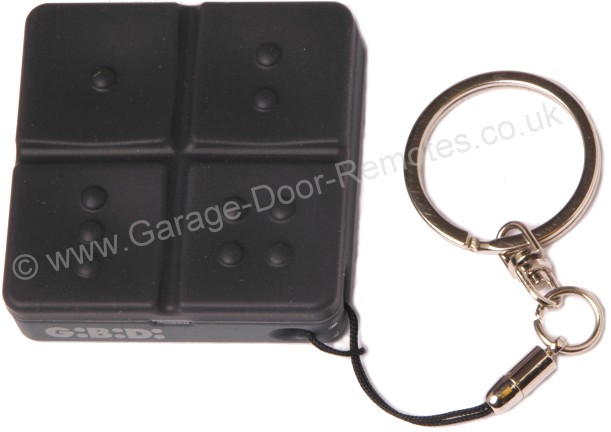

Gibidi AU03000
'Domino style' keyfob
| | Type AU03000 - four channel 'Domino style' keyfob transmitter | Compatible with all Gibidi 433Mhz rolling code systems this new
keyfob can provide individual control of up to four receivers.
dimensions: 42mm x 42mm x 12mm - weight 22gms
keychain, Velcro fixing pads & two CR2016 batteries included
price for one £34.75 inc. VAT
price for two £29.53 each inc. VAT
(up to 15% mixed quantity discount available on this item)
Qty in stock:
| | | Battery replacement: prise the two halves apart to reveal two CR2016 batteries |
|
Programming procedure for Gibidi AU01600, AU01680 & AU03000 433Mhz rolling code key-fob transmitters
Method A (requires access to the gate control enclosure)
1. Locate the programming button inside your Gibidi gate control enclosure (or Gibidi garage door operator)
and press it briefly, an LED will flash on the receiver P.C.B., you now have 10 seconds to perform the next step.
2. Take the new transmitter and press the button that you wish to use to operate your receiver for one second.
3. Programming is now complete and your new handset should now operate your receiver.Method B (requires an existing working Gibidi transmitter)
1. Stand within close proximity of the Gibidi gate control enclosure (or Gibidi garage door operator) that you wish to control.
2. Take an existing working Gibidi transmitter and press buttons one & two simultaneously and hold
them both down for exactly five seconds, you now have 10 seconds to perform the next step.
3. Take the new transmitter and press the button that you wish to use to operate your receiver for one second.
4. Programming is now complete and your new handset should now operate your receiver. Clearing the memory - (necessary if a handset has been lost or stolen)
Locate the programming button on the receiver/control PCB. Press this button briefly then press a second time
and hold it down until the LED goes out then follow steps 1 to 3 above to re-program all remaining keyfobs. For further information refer to the installation manual for your specific gate or door control system - click here for manuals | | |
|
Quantity Discount is calculated automatically on
the above products by our on-line shopping system
(discounts apply to mixed orders of two and four button version) Just enter the quantity required and click "Buy Now"
|
| The radio frequency of these Gibidi transmitters can be determined by the colour of the push-buttons eg:- | blue buttons = 40.685Mhz
yellow buttons = 300Mhz (discontinued, see below) | Note:- The 300Mhz version of these transmitters (with yellow
buttons) have been discontinued click here for a receiver upgrade
|
Click to enlarge images

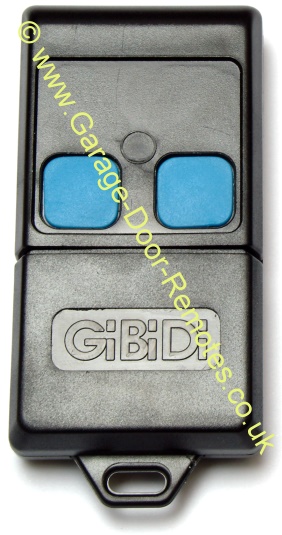

PASS TM/B 40 PASS TM/Q 40 | Gibidi 40.685Mhz transmitter (blue buttons)
LR23A battery included | Two channel - PASS TM/B - 40.6
can provide individual control of up to two 40Mhz Gibidi receivers
dimensions: 83mm x 40mm x 17mm - weight 46gms
price for one £34.75 inc. VAT
price for two £29.53 each inc. VAT
(up to 15% mixed quantity discount available on this item)
Qty in stock:

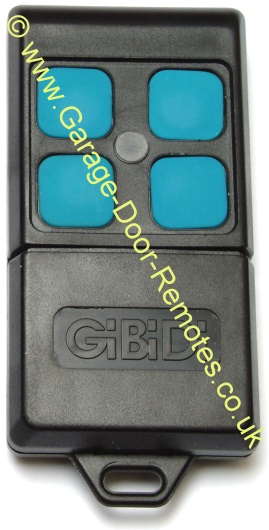

| | | Four channel - PASS TM/Q - 40.6 - discontinued | | | Programming procedure for Gibidi PASS series key-fobs These transmitters have ten binary switches inside the battery compartment to set the security code to one of 1024 combinations, the code switches on a replacement keyfob should be set to the same sequence as switches in your original transmitter. |
|
Gibidi gate control system installation manuals Compatibility
Each remote control system manufacturer uses a unique security code protocol,
therefore the above transmitters can only be used with the specific make & model
of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same
|
| Replacement Batteries & Accessories |
12 Volt Alkaline battery type LR23A
(equivalent: LRV08, 8LR932, MN21, V23GA, E23A, LR23AE)
price each £
inc VAT Qty in stock:
| |
|
 | Two 3 Volt Lithium "coin" batteries type CR2016
(two used in the new Gibidi Domino keyfob)
price (for two) £
inc VAT Qty in stock:
| |
|
Domino numeric
digital entry keypad
| Domino external digital numeric entry keypad The DOMINO keyless digital entry system is a simple and secure way to open and close your garage door without the need for a key or remote control
(three "AA" batteries included)
Our Ref: DOM/GD1
price £
inc VAT Qty in stock:
| |
