Hormann remote control hand transmitters

Genuine Hormann remote control transmitters for Ecomatic, SupraMatic ProMatic & Rotamatic garage door operators.
also compatible with Hormann STA & DTA gate operators

Hormann transmitters also compatible with
the following Garador electric operators:
Garamatic 7, Garamatic 9, Garamatic 10, Garamatic 20, Garador Auto Expert & Auto M2

Important Note

The colour of the buttons on these transmitters indicate the operating frequency so you must order a replacement with the same colour buttons as your original handset.

grey case with light blue buttons = 868 Mhz
grey case with light grey buttons = 40.685 Mhz
black case with green buttons - click for details

The operating frequency of the system is also
printed on the receiver unit casing as shown here

If your original transmitter has light blue
buttons you have an 868Mhz system

Click image for details

If your original transmitter has light grey
buttons you have a 40.685Mhz system

Click image for details

Click Here for 868Mhz types

Click Here for 40.685Mhz types

Prefer something smaller ?

'Mini' key-fob
dimensions 41mm x 26mm x 10mm

Click here for details of
our mini keyfob upgrade kit

www.garage-door-remotes.co.uk are a specialist
mail order supplier of remote control transmitters

Note: we do not supply any other spares parts
for Hormann or Garador electric operators

Early Hormann transmitters
these systems may require a radio system upgrade

Hormann single channel handset
discontinued - click here for upgrade

Hormann DHM02 key-fob
discontinued - click here for upgrade

Early Hormann handsets have a 10 way DIP switch inside the battery
compartment and operate on one of the following radio frequencies :-

173.3Mhz types have an orange sticker inside marked 'GB'- (no longer available - upgrade req'd)
26.975Mhz types have 26975 marked on the back at the top - (no longer available - upgrade req'd)
26.995Mhz types have 26995 marked on the back at the top - (replaced by type HSM27 below or upgrade)

Note: if you are unable to identify the above markings the frequency
may be found on the tuning crystal inside (small metal can)

Click image to enlarge

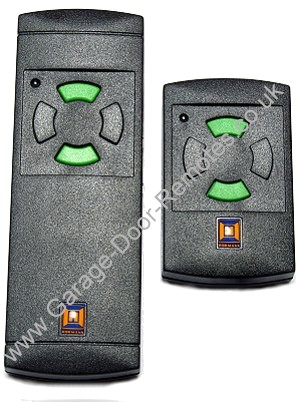

HS27 handset and HSM27 mini

Note: the two button HS & HSM types
illustrated above are discontinued.
The replacement transmitters have four buttons and can provide individual control of up to four Hormann electric operators

Transmitter to suit Hormann units
operating on the 26.995Mhz frequency >> more info
(green buttons)
12 Volt LR23A battery included

type HS27 handset - Discontinued (use HSM27 or fit upgrade kit
dimensions: 110mm x 38mm x 14mm

type HSM27 keyfob - Qty in stock:
dimensions: 60mm x 38mm x 14mm
Note: Hormann no longer include a keyring loop with the HSM
price: � inc. VAT

Note: a radio system upgrade kit is also available

If your handset is discontinued you
can upgrade to a new radio system

• Remote control upgrade kit •

If your original handset does not resemble any of the above types your installer may have supplied an alternative radio remote control which you may recognize on our main handset page

Remote control transmitters for Hormann ECOSTAR, PROMATIC and Garador EUROPRO garage door operators
Click for details	Click for details

Accessories & Batteries
	Wall mounted holder for Hormann transmitters This will convert a Hormann HS or HSM style transmitter into a wireless wall mounted control switch. the transmitter can be removed easily for portable use price � inc VAT Qty in stock: Qty:

	12 Volt Alkaline battery type GP23A as used in Hormann HS & HSM keyfobs (equivalent to types: A23, LRV08, 8LR932, MN21, V23GA, E23A, LR23A) dimensions: L 27.5mm x 10mm dia. price � inc VAT Qty in stock: Qty:

	6 Volt Alkaline battery type GP11A as used in Hormann/Garador HSE keyfobs (equivalent to types: 11A, LR11A & MN11) dimensions: L 16mm x 10mm dia. price � inc VAT Qty in stock: Qty:

	3 Volt Lithium 'coin' battery type CR2025 as used in Hormann types HSZ1 & HSZ2 price � inc VAT Qty in stock: Qty:

Domino numeric digital entry keypad	Domino external digital numeric entry system The DOMINO keyless digital entry system is a simple and secure way to open and close your garage door without the need for a key or remote control (three 'AA' batteries included) Our Ref: DOMINO price � inc VAT Qty in stock:

PLEASE NOTE:
Remote controls are despatched by Royal Mail recorded delivery,
if you are not at home to sign for the goods when your postman calls
please provide an alternative address on our on-line order checkout page

option for orders
over �35

Same day despatch on orders submitted by 4pm
Next-day delivery also available*
(*on orders placed Mon to Thurs only)

choose 'next-day' delivery at the checkout
