We have an easy to fit key-fob style remote control upgrade for PDT roller door control units
Original PDT keyfob
Our mini key-fob alternative dimensions - 41mm x 26mm x 10mm weighs just 8 grams !
Our upgrade kit comprises of a new remote control transmitter and a matching radio receiver module that can be fitted to your existing PDT roller door control unit in just a few minutes
PDT roller door control unit
(suits both 418Mhz and 433Mhz models but it must be the pre-2005 type with a single pushbutton on the underside of casing as shown below)

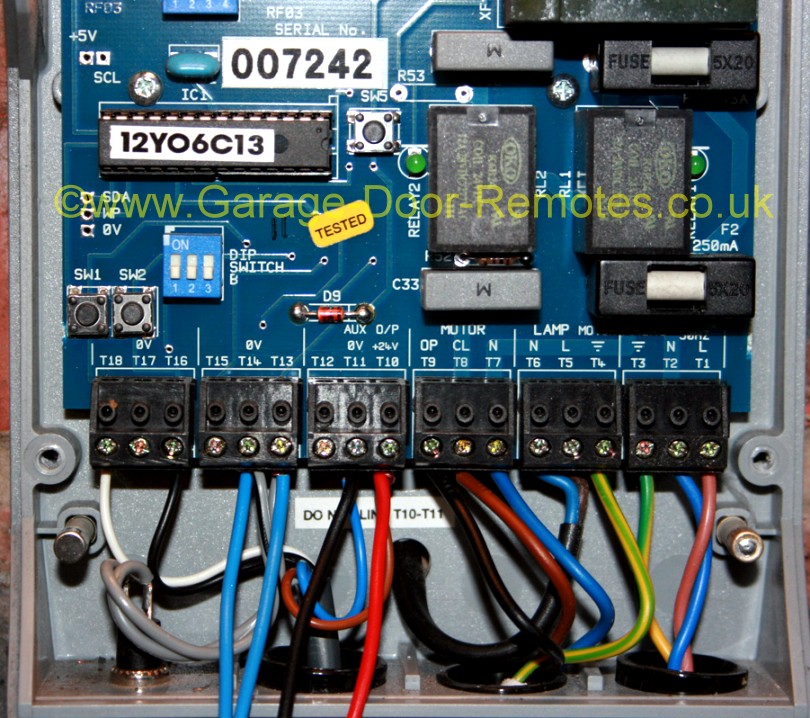

Click image to enlarge PDT roller door control unit - inside view

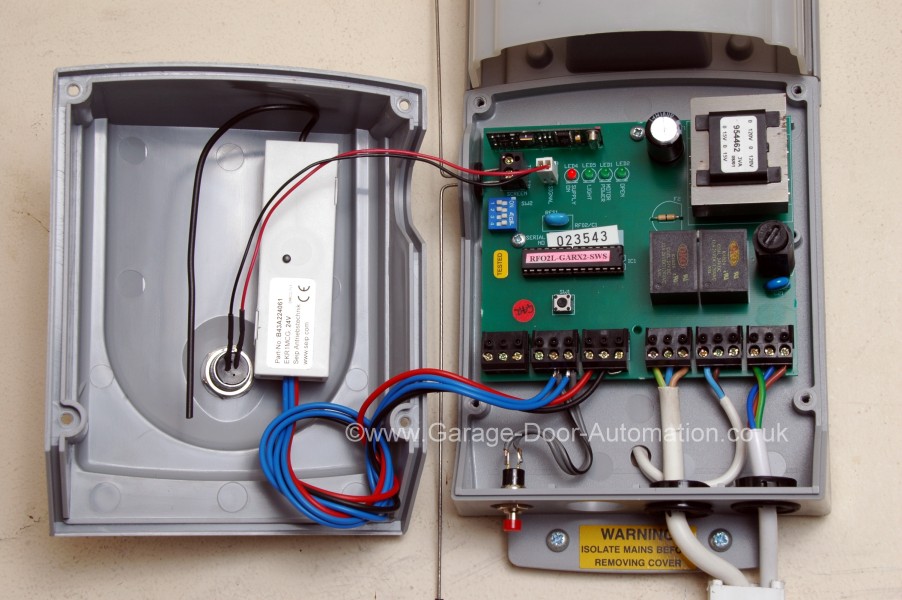

The Seip EKR1MCG 24V receiver unit can be mounted inside the lid of your PDT control unit enclosure using the self adhesive pads supplied and connected to the terminal block as shown below

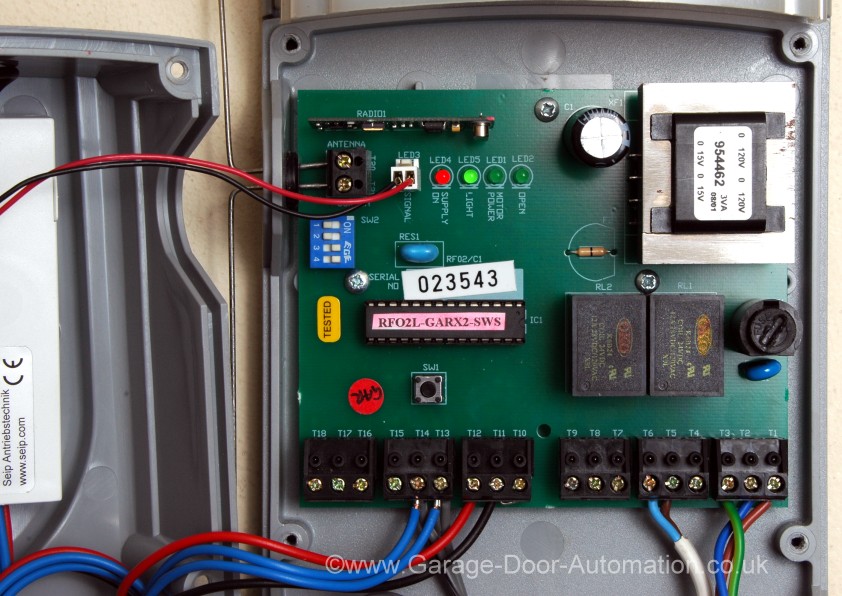

connect the black wire to terminal T11
connect the red wire to terminal T12
connect one blue wire to terminal T13
connect one blue wire to terminal T14 Click image to enlarge
Notes: 1/ Unlike the original PDT remote control system, the Seip EKR1MCG upgrade is a single channel system that will provide "open" "close" and "stop" functions from one button, (first press brings on the courtesy lamp, next press "start" third press "stop" fourth press starts the door in the opposite direction) the other buttons on Seip keyfobs can allow additional doors or gates to be controlled (up to four items)
2/ The Seip EKR1MCG receiver kit is not compatible with the new "Rollertec" Ver: 1 and Ver: 2 models with "door safety edge" and three pushbuttons on the wall mounted control box which was introduced by PDT in 2005

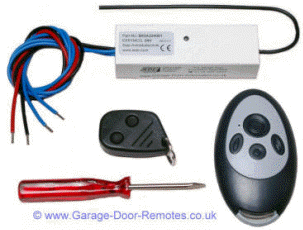

Click to enlarge image Seip EKR1MCG receiver upgrade kit (illustrated with mini & midi keyfobs) receiver module dimensions 84mm x 26mm x 19mm
Can be installed and working within about 5 minutes with no technical knowledge
We even supply a screwdriver !
Receiver unit£45.00 inc VAT (keyfob not included) Keyfob transmitters from £29.74 each inc VAT (see below for quantity discount prices)
Qty in stock:
order before 2pm for same day despatch
Choice of keyfob style transmitter to suit your lifestyle
Click to enlarge image "Mini" key-fob transmitter SKRJ433 The toughest & most durable mini keyfob transmitter available dimensions 41mm x 26mm x 10mm weighs just 8gms - CR1616 lithium batteries included It can be kept on your keyring to control up to two receivers Qty in stock:
Click to enlarge image "Midi" key-fob transmitter SKR433-1 dimensions 83mm x 47mm x 18mm weight 27gms - LR23A battery included can provide individual control of up to four receivers Qty in stock:
How to order: Enter the receiver & keyfob quantities you require into the boxes below, click "Buy Now" & proceed to the checkout
Receiver & keyfob prices:
Receiver unit£45.00 inc VAT Qty in stock:
Keyfob transmitters from £29.74 each inc VAT (see below for keyfob quantity discount prices)
Keyfob quantity prices
1 =
£39.95
2 to 4 =
£36.68
5 to 9 =
£33.95
10+ =
£29.74
Quantity discounts are calculated automatically by our on-line shopping cart and apply to mixed orders of SKRJ433 mini or SKR433-1 midi type keyfobs
order before 2pm for same day despatch
Simple D.I.Y. Installation
Don't just take our word for it ! - Read what our customers say !
To anyone considering a Seip EKR1MCG remote control receiver kit :- The equipment works easily - Its installation takes literally 5 minutes. But if you've little electrical knowledge, like me, consider the back-up service you get! Anything you need to know, any time, the craziest of problems, this company is at the end of an e-mail. This has been the best service I have received for a product like this literally for years USE THEM !!! THEY'RE THE BEST!!! Gareth Davies, Kent.
Having purchased a new car with the HomeLink built-in remote system I was disappointed to find my Seceuroglide doors were not compatible.... A quick internet search and I found Nick at Amourelle who was very helpful and pointed me in the direction of a couple of Seip radio receivers and a mini key fob. Quick posting and a few minutes installation (really was simple with the on-line instructions and diagram) and I can now operate both garage doors from the comfort of my car. Great customer service. Thanks - David - York.
UK Home Office & CE approved for use in the UK and Europe Conforms to MPT 1340 specification
compatible
Compatible with the Home-Link in-car remote control* as fitted to Audi, Bentley, BMW, Chrysler, Jaguar, Lamborghini, Maybach, Mercedes-Benz, Opel, Porsche, VW & Vauxhall (car must have Homelink system with software rev. 6 or later)
Accessories & Batteries
Click to enlarge image
Wall holder for oval midi keyfob - converts the oval midi keyfob into a wireless wall control switch (keyfob can be removed easily for portable use) price £5.75 inc VAT Qty in stock:
Light switch style wireless door control switch can provide individual control of two Seip motors or receivers compatible with Seip TM60, TS75 & TS100 door operators and Seip EKR1MCG & EKR1MCT receiver units only - CR2032 battery included
Seip Ref: SKR2W433 price £52.49 inc. VAT Qty in stock:
Click to enlarge image
Seip wireless external digital numeric entry keypad can be programmed with up to four separate personal security codes to provide individual control of four Seip motors or receivers compatible with Seip TM60, TS75 & TS100 door operators and Seip EKR1MCG & EKR1MCT receiver units only - PP3 9v battery included
The DOMINO keyless digital entry system is a simple and secure way to open and close your garage door without the need for a key or remote control (three "AA" batteries included)
Our Ref: DOM/GD1 price £
inc VAT Qty in stock:
12 Volt Alkaline battery type LR23A (Equivalent to types :- LRV08, 8LR932, MN21, V23GA, E23A) to suit Seip midi keyfobs price £
inc VAT Qty in stock:
Two 3 Volt Lithium "coin" batteries type CR1616 to suit Seip mini keyfob price (for two) £
inc VAT Qty in stock:
MPT 1340 UK approved 433Mhz frequencies
Range aprox 75mtrs
German Quality at your Fingertips !
All Seip products have a Five Year Manufacturers Guarantee
Would you like to add remote control to your :-
Garden Lighting Water Features Pond Pumps or Entrance Gates ?
Seip manufacture a receiver to enable items such as gates or garden pumps & lights etc. to be operated from spare buttons on your Seip keyfob transmitter, the receiver is housed in a weatherproof enclosure making it suitable for indoor or outdoor applications
Q/ Can I use the spare button(s) on Seip keyfobs to control other doors or items around the home ? A/ Yes - Seip produce a range of receivers to enable gates, water pumps & lights etc. to be controlled by spare buttons on the Seip keyfob
Q/ Will I still be able to use the original hand transmitters ? A/ Yes - by leaving the original PDT aerial (red wire) connected and attaching a new Seip receiver in addition, both new and old transmitters can be used to control a door
Q/ What is the range from which I can control the door ? A/ Seip keyfobs have a range of approx. 75 - 100 Mtrs
