Seip 433Mhz four channel radio receiver

Four Channel Radio Remote Control System
from Seip Antriebs Technik
Germany's leading garage door automation specialist

Ideal for wireless remote control of
Garden Lighting - Water Features
Pond Pumps - Garage Doors - Entrance Gates

Click image to enlarge

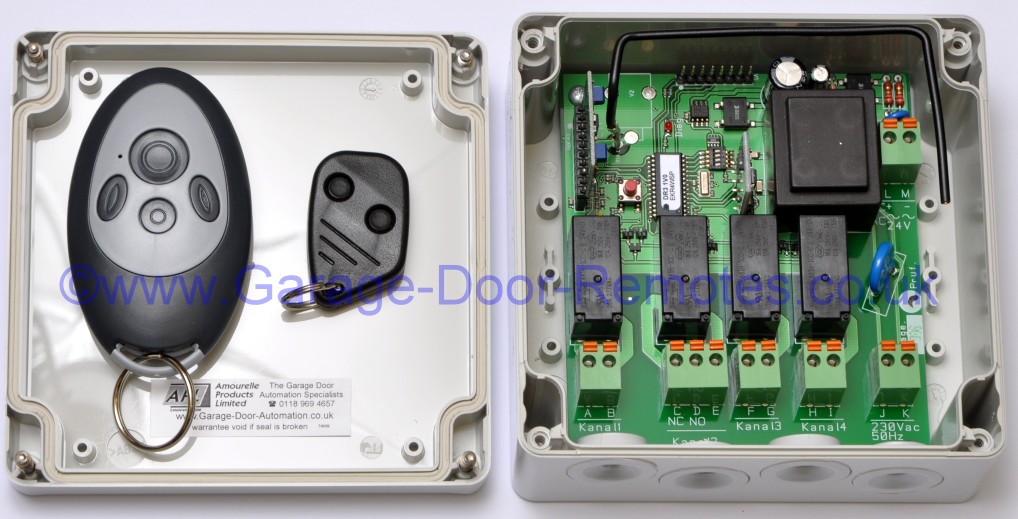

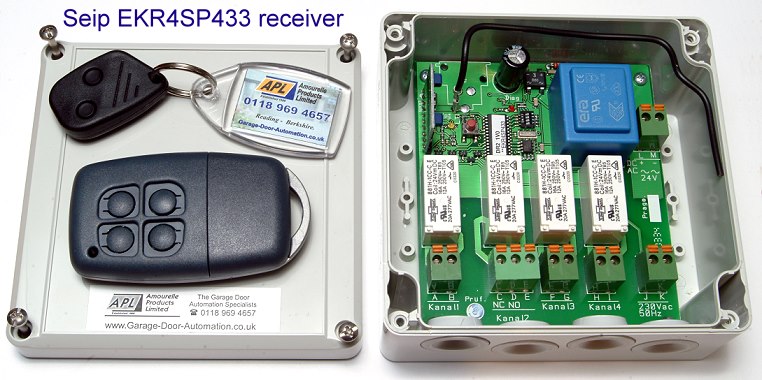

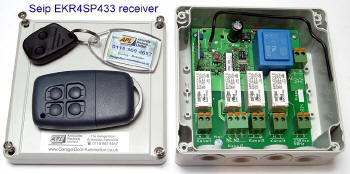

Seip four channel radio control receiver
(shown with Midi & Mini keyfobs)

This versatile four channel radio control receiver is housed in a Weather-resistant 'IP65 specification' enclosure suitable for internal or external use

Range aprox 75 - 100mtrs

enclosure dimensions:
W 122mm x H 120mm x D 58mm

The Seip EKR4SP433 receiver unit can provide individual control of up to four items such as remote controlled garage doors, gates, pumps or outside lighting etc. The unit is suitable for internal or external use and can be powered either from a 24 volt AC / DC supply or direct from 240V AC mains via an integral transformer. The product has four relay outputs with isolated volt-free relay contacts rated @12A 240V making the unit suitable for switching low-voltage or mains equipment. Each channel can be configured to function in either latched* or impulse* mode.

*Latched mode - for control of lamps & pumps etc, - the first impulse from the hand-transmitter will close the relay contacts which will then remain closed until the next impulse is received from the hand-transmitter.
For a wiring diagram for controlling lighting click here

*Impulse mode - used for items such as gates & garage doors etc. which just require a short impulse so start running - the relay will remain closed for as long as the hand transmitter is pressed (max 30 secs) and release when the hand transmitter button is released. (channel two has a relay with changeover type contacts, the remaining three channels have normally-open contacts)

Up to 250 Seip SKR433 series transmitters can be programmed, the SKR433-1 midi keyfob transmitter and Seip SKR4C433 wireless digital entry keypad will provide individual control of all four channels whilst the smaller SKRJ433 mini keyfob transmitter and the SKR2W433 wireless wall control panel will only control channel one and channel two.

EKR4SP433 receiver price � inc VAT
(keyfob not included)
Qty in stock:

(keyfob transmitters are priced separately, see prices below)

Choice of keyfob style transmitter (maximum number of transmitters: 250)
Click image to enlarge 'Mini' key-fob transmitter SKRJ433 The toughest & most durable mini keyfob transmitter available dimensions 41mm x 26mm x 10mm weighs just 8gms - CR1616 lithium batteries included It can be kept on your keyring to control up to two receivers Qty in stock:	Click image to enlarge 'Midi' key-fob transmitter SKR433-1 dimensions 83mm x 47mm x 18mm weight 27gms - LR23A battery included can provide individual control of up to four receivers Qty in stock:

How to order your system:
Enter your choice of keyfobs to be despatched with your
Seip receiver unit into the boxes below and click 'Buy Now'
(the total price for your selection will be displayed at the checkout)

*Choose your keyfob type & quantity:* (enter the quantities required and click 'Buy Now')
	Mini keyfob Qty: Midi keyfob Qty:

Quantity Discounts are calculated automatically by our on-line shopping cart and apply to mixed orders of SKRJ433 mini or SKR433-1 midi type keyfobs

Keyfob quantity prices
1 =	�39.95
2 to 4 =	�36.68
5 to 9 =	�33.95
10+ =	�29.74

Installation & programming instructions (PDF file)

UK Home Office & CE approved for use in the UK and Europe
Conforms to MPT 1340 specification

Five Year Manufacturers Guarantee

Spares & Accessories

• Replacement Seip Keyfobs • Spare Batteries •

Click image to enlarge

Wall holder for oval midi keyfob
converts the oval midi keyfob into a wireless wall control switch
(keyfob can be removed easily for portable use)

price � inc VAT Qty in stock:

Click image to enlarge

Light switch style wireless wall mounted door control switch
can provide individual control of two Seip motors or receivers
compatible with Seip TM & TS series door operators and Seip
EKR1MCG & EKR1MCT & EKR4SP433 receiver units only
CR2032 battery included
dimensions 80mm x 80mm x 14mm

Seip Ref: SKR2W433

price � inc. VAT Qty in stock:

Click image to enlarge

Wireless wall mounted door control switch
to control one Seip motor or receiver unit
compatible with Seip TM & TS series door operators and Seip
EKR1MCG & EKR1MCT & EKR4SP433 receiver units only
LR23A battery included
dimensions 61mm x 61mm x 15mm

Our Ref: WSW-1B

price � inc. VAT Qty in stock:

Click image to enlarge

Seip wireless external digital numeric entry keypad
can be programmed with up to four separate personal security
codes to provide individual control of four Seip motors or receivers
compatible with Seip TM & TS series door operators and Seip
EKR1MCG & EKR1MCT & EKR4SP433 receiver units only
A 9v alkaline battery is included and the unit
has a battery life of approximately 5 years.
Seip Ref: SKR4C433

price � inc. VAT Qty in stock:
